Fog_param

Description
Tests the effects of NV097_SET_FOG_PARAMS.
Note that the 3rd parameter to SET_FOG_PARAMS always appears to be set to 0.0 in practice and alternative values do not appear to have any effect. Non-zero values are omitted from these tests for brevity.
Suite class def

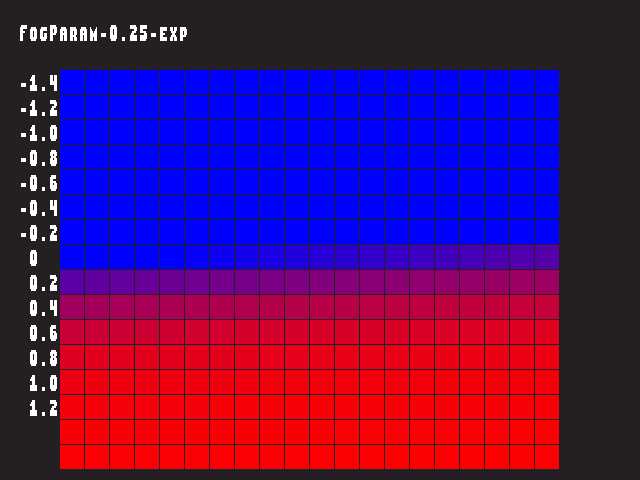

FogParam-0.25-exp

Tests fog mode NV097_SET_FOG_MODE_V_EXP with the bias param set to the zero point for the type and the multiplier set to -0.25. Quads are rendered with fog coordinates starting at -1.4 and increasing by 0.01 per quad.

Image with alpha
Test result for Fog_param::FogParam-0.25-exp
Image as seen on display
No alpha test result for Fog_param::FogParam-0.25-exp

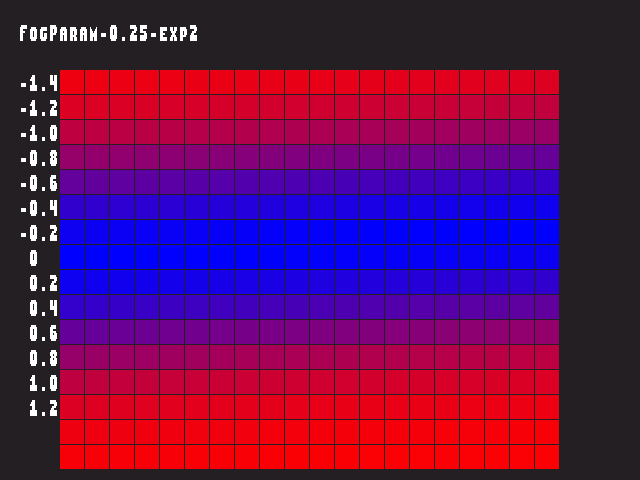

FogParam-0.25-exp2

Tests fog mode NV097_SET_FOG_MODE_V_EXP2 with the bias param set to the zero point for the type and the multiplier set to -0.25. Quads are rendered with fog coordinates starting at -1.4 and increasing by 0.01 per quad.

Image with alpha
Test result for Fog_param::FogParam-0.25-exp2
Image as seen on display
No alpha test result for Fog_param::FogParam-0.25-exp2

FogParam-0.25-exp2_abs

Tests fog mode NV097_SET_FOG_MODE_V_EXP2_ABS with the bias param set to the zero point for the type and the multiplier set to -0.25. Quads are rendered with fog coordinates starting at -1.4 and increasing by 0.01 per quad.

Image with alpha
Test result for Fog_param::FogParam-0.25-exp2_abs
Image as seen on display
No alpha test result for Fog_param::FogParam-0.25-exp2_abs

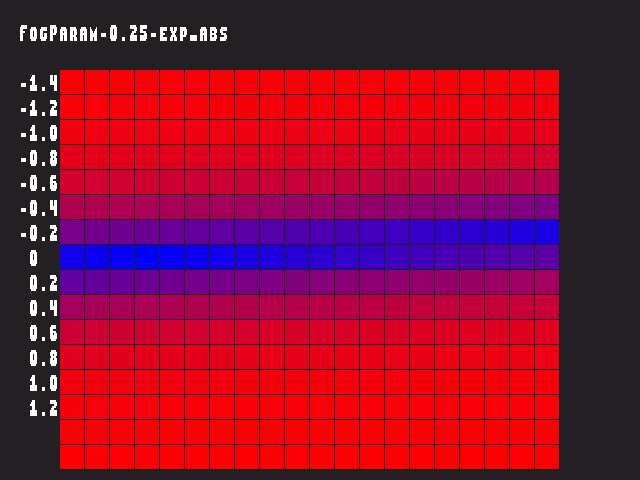

FogParam-0.25-exp_abs

Tests fog mode NV097_SET_FOG_MODE_V_EXP_ABS with the bias param set to the zero point for the type and the multiplier set to -0.25. Quads are rendered with fog coordinates starting at -1.4 and increasing by 0.01 per quad.

Image with alpha
Test result for Fog_param::FogParam-0.25-exp_abs
Image as seen on display
No alpha test result for Fog_param::FogParam-0.25-exp_abs

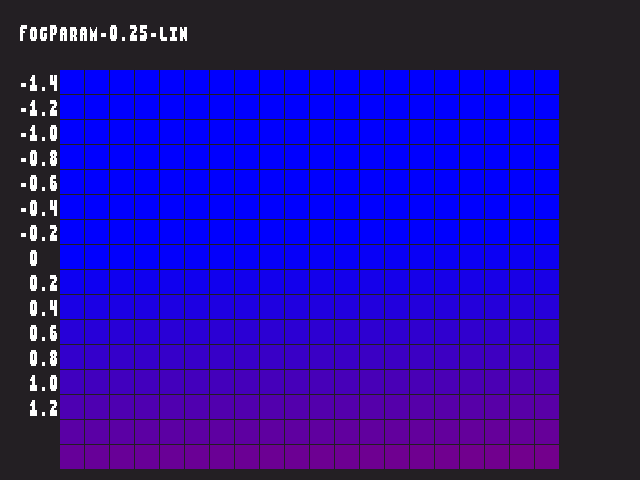

FogParam-0.25-lin

Tests fog mode NV097_SET_FOG_MODE_V_LINEAR with the bias param set to the zero point for the type and the multiplier set to -0.25. Quads are rendered with fog coordinates starting at -1.4 and increasing by 0.01 per quad.

Image with alpha
Test result for Fog_param::FogParam-0.25-lin
Image as seen on display
No alpha test result for Fog_param::FogParam-0.25-lin

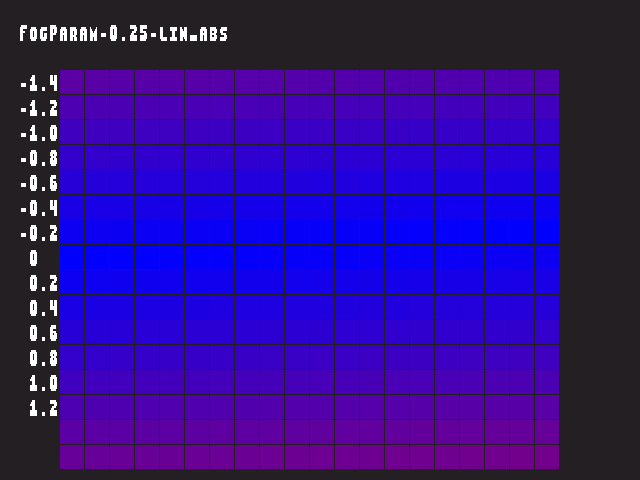

FogParam-0.25-lin_abs

Tests fog mode NV097_SET_FOG_MODE_V_LINEAR_ABS with the bias param set to the zero point for the type and the multiplier set to -0.25. Quads are rendered with fog coordinates starting at -1.4 and increasing by 0.01 per quad.

Image with alpha
Test result for Fog_param::FogParam-0.25-lin_abs
Image as seen on display
No alpha test result for Fog_param::FogParam-0.25-lin_abs

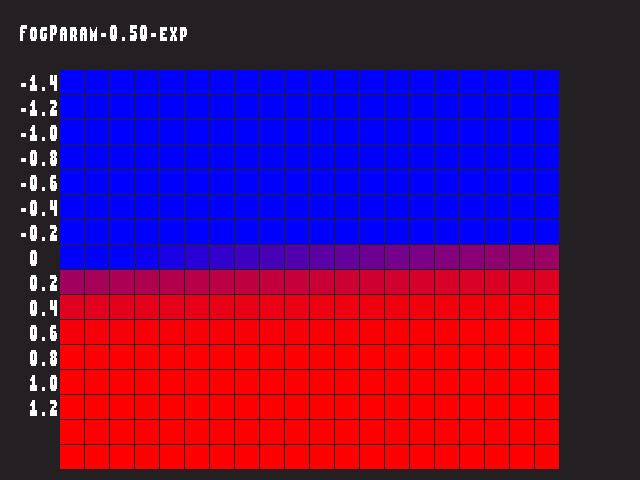

FogParam-0.50-exp

Tests fog mode NV097_SET_FOG_MODE_V_EXP with the bias param set to the zero point for the type and the multiplier set to -0.50. Quads are rendered with fog coordinates starting at -1.4 and increasing by 0.01 per quad.

Image with alpha
Test result for Fog_param::FogParam-0.50-exp
Image as seen on display
No alpha test result for Fog_param::FogParam-0.50-exp

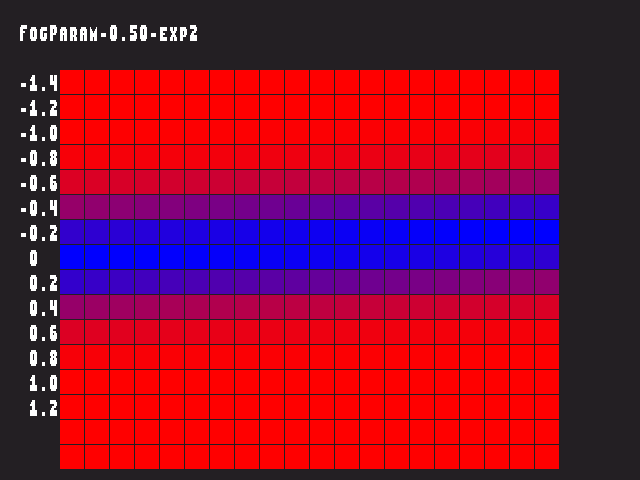

FogParam-0.50-exp2

Tests fog mode NV097_SET_FOG_MODE_V_EXP2 with the bias param set to the zero point for the type and the multiplier set to -0.50. Quads are rendered with fog coordinates starting at -1.4 and increasing by 0.01 per quad.

Image with alpha
Test result for Fog_param::FogParam-0.50-exp2
Image as seen on display
No alpha test result for Fog_param::FogParam-0.50-exp2

FogParam-0.50-exp2_abs

Tests fog mode NV097_SET_FOG_MODE_V_EXP2_ABS with the bias param set to the zero point for the type and the multiplier set to -0.50. Quads are rendered with fog coordinates starting at -1.4 and increasing by 0.01 per quad.

Image with alpha
Test result for Fog_param::FogParam-0.50-exp2_abs
Image as seen on display
No alpha test result for Fog_param::FogParam-0.50-exp2_abs

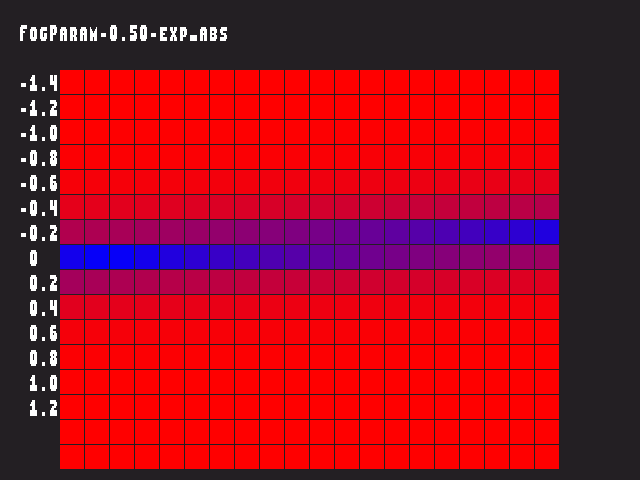

FogParam-0.50-exp_abs

Tests fog mode NV097_SET_FOG_MODE_V_EXP_ABS with the bias param set to the zero point for the type and the multiplier set to -0.50. Quads are rendered with fog coordinates starting at -1.4 and increasing by 0.01 per quad.

Image with alpha
Test result for Fog_param::FogParam-0.50-exp_abs
Image as seen on display
No alpha test result for Fog_param::FogParam-0.50-exp_abs

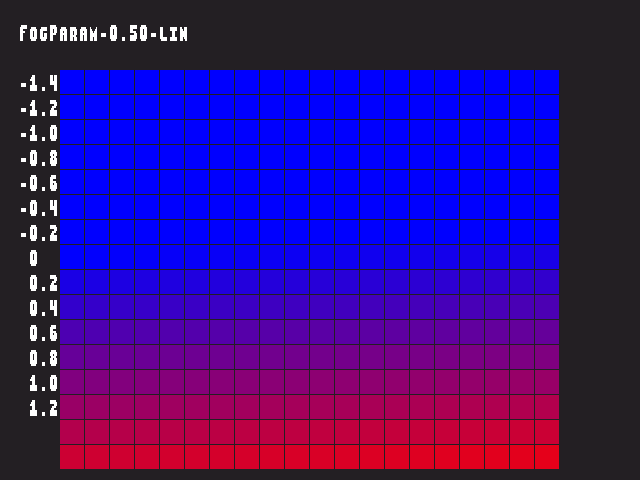

FogParam-0.50-lin

Tests fog mode NV097_SET_FOG_MODE_V_LINEAR with the bias param set to the zero point for the type and the multiplier set to -0.50. Quads are rendered with fog coordinates starting at -1.4 and increasing by 0.01 per quad.

Image with alpha
Test result for Fog_param::FogParam-0.50-lin
Image as seen on display
No alpha test result for Fog_param::FogParam-0.50-lin

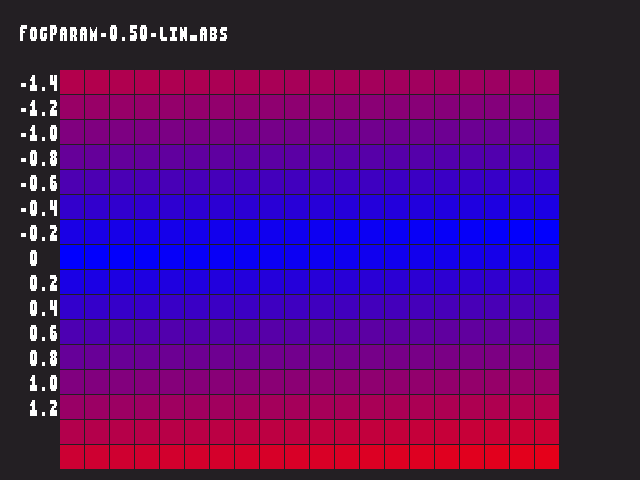

FogParam-0.50-lin_abs

Tests fog mode NV097_SET_FOG_MODE_V_LINEAR_ABS with the bias param set to the zero point for the type and the multiplier set to -0.50. Quads are rendered with fog coordinates starting at -1.4 and increasing by 0.01 per quad.

Image with alpha
Test result for Fog_param::FogParam-0.50-lin_abs
Image as seen on display
No alpha test result for Fog_param::FogParam-0.50-lin_abs

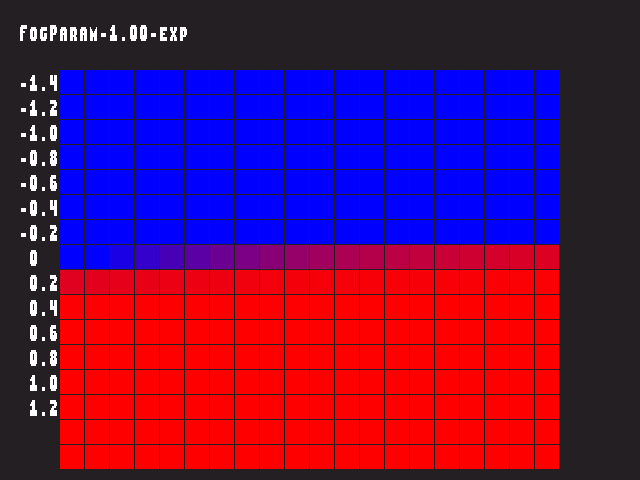

FogParam-1.00-exp

Tests fog mode NV097_SET_FOG_MODE_V_EXP with the bias param set to the zero point for the type and the multiplier set to -1.0. Quads are rendered with fog coordinates starting at -1.4 and increasing by 0.01 per quad.

Image with alpha
Test result for Fog_param::FogParam-1.00-exp
Image as seen on display
No alpha test result for Fog_param::FogParam-1.00-exp

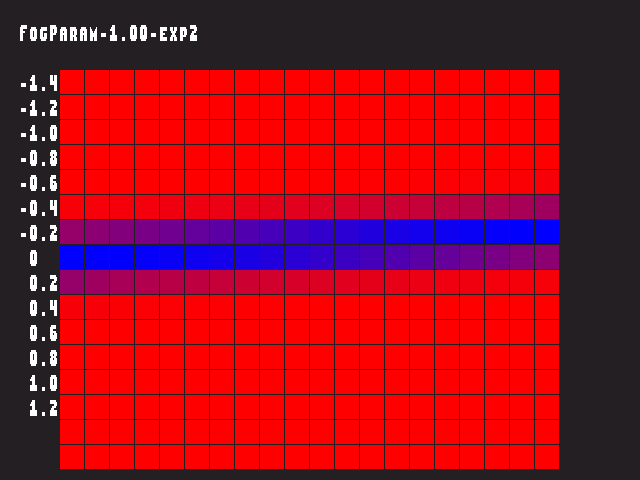

FogParam-1.00-exp2

Tests fog mode NV097_SET_FOG_MODE_V_EXP2 with the bias param set to the zero point for the type and the multiplier set to -1.0. Quads are rendered with fog coordinates starting at -1.4 and increasing by 0.01 per quad.

Image with alpha
Test result for Fog_param::FogParam-1.00-exp2
Image as seen on display
No alpha test result for Fog_param::FogParam-1.00-exp2

FogParam-1.00-exp2_abs

Tests fog mode NV097_SET_FOG_MODE_V_EXP2_ABS with the bias param set to the zero point for the type and the multiplier set to -1.0. Quads are rendered with fog coordinates starting at -1.4 and increasing by 0.01 per quad.

Image with alpha
Test result for Fog_param::FogParam-1.00-exp2_abs
Image as seen on display
No alpha test result for Fog_param::FogParam-1.00-exp2_abs

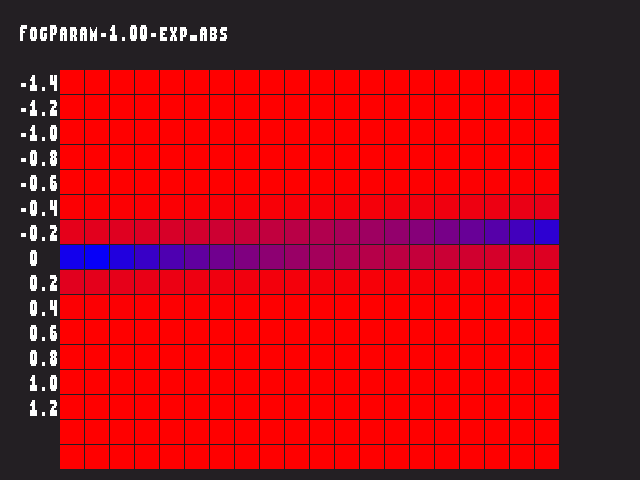

FogParam-1.00-exp_abs

Tests fog mode NV097_SET_FOG_MODE_V_EXP_ABS with the bias param set to the zero point for the type and the multiplier set to -1.0. Quads are rendered with fog coordinates starting at -1.4 and increasing by 0.01 per quad.

Image with alpha
Test result for Fog_param::FogParam-1.00-exp_abs
Image as seen on display
No alpha test result for Fog_param::FogParam-1.00-exp_abs

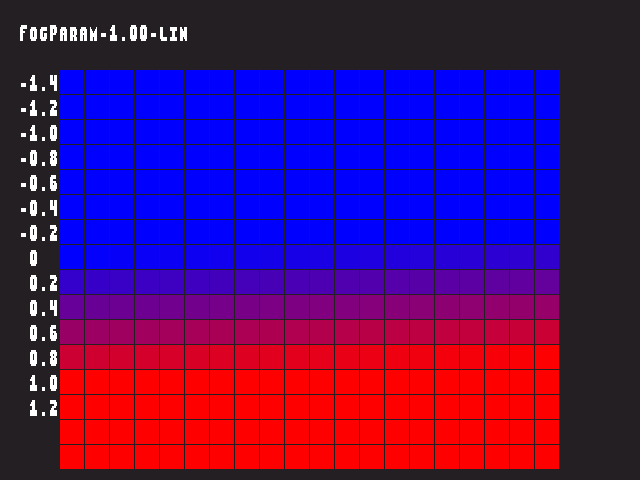

FogParam-1.00-lin

Tests fog mode NV097_SET_FOG_MODE_V_LINEAR with the bias param set to the zero point for the type and the multiplier set to -1.0. Quads are rendered with fog coordinates starting at -1.4 and increasing by 0.01 per quad.

Image with alpha
Test result for Fog_param::FogParam-1.00-lin
Image as seen on display
No alpha test result for Fog_param::FogParam-1.00-lin

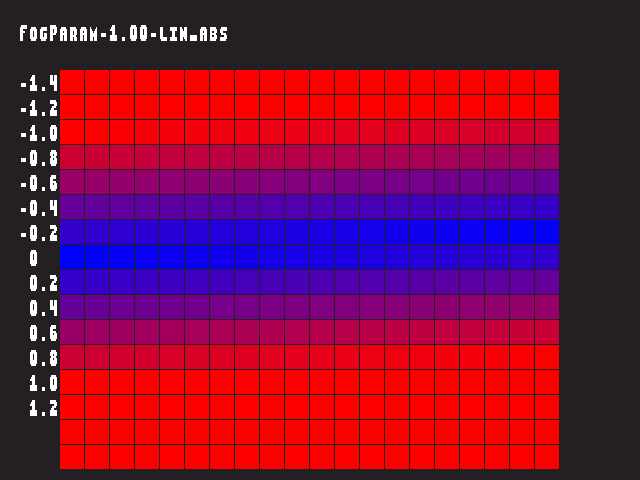

FogParam-1.00-lin_abs

Tests fog mode NV097_SET_FOG_MODE_V_LINEAR_ABS with the bias param set to the zero point for the type and the multiplier set to -1.0. Quads are rendered with fog coordinates starting at -1.4 and increasing by 0.01 per quad.

Image with alpha
Test result for Fog_param::FogParam-1.00-lin_abs
Image as seen on display
No alpha test result for Fog_param::FogParam-1.00-lin_abs

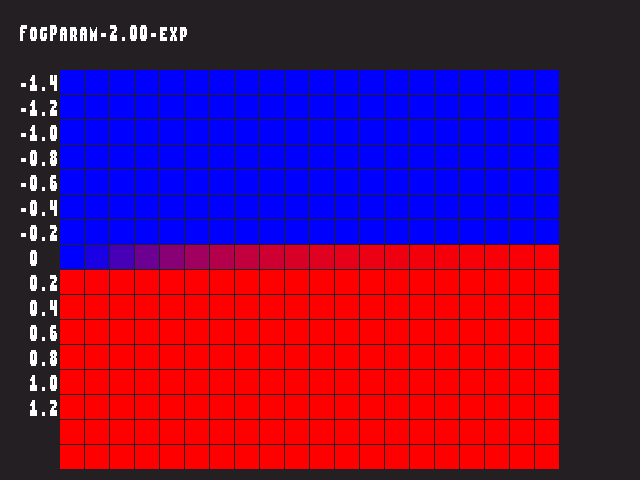

FogParam-2.00-exp

Tests fog mode NV097_SET_FOG_MODE_V_EXP with the bias param set to the zero point for the type and the multiplier set to -2.0. Quads are rendered with fog coordinates starting at -1.4 and increasing by 0.01 per quad.

Image with alpha
Test result for Fog_param::FogParam-2.00-exp
Image as seen on display
No alpha test result for Fog_param::FogParam-2.00-exp

FogParam-2.00-exp2

Tests fog mode NV097_SET_FOG_MODE_V_EXP2 with the bias param set to the zero point for the type and the multiplier set to -2.0. Quads are rendered with fog coordinates starting at -1.4 and increasing by 0.01 per quad.

Image with alpha
Test result for Fog_param::FogParam-2.00-exp2
Image as seen on display
No alpha test result for Fog_param::FogParam-2.00-exp2

FogParam-2.00-exp2_abs

Tests fog mode NV097_SET_FOG_MODE_V_EXP2_ABS with the bias param set to the zero point for the type and the multiplier set to -2.0. Quads are rendered with fog coordinates starting at -1.4 and increasing by 0.01 per quad.

Image with alpha
Test result for Fog_param::FogParam-2.00-exp2_abs
Image as seen on display
No alpha test result for Fog_param::FogParam-2.00-exp2_abs

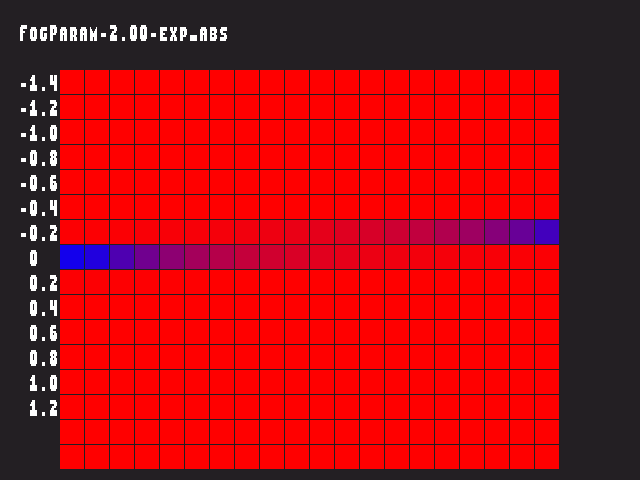

FogParam-2.00-exp_abs

Tests fog mode NV097_SET_FOG_MODE_V_EXP_ABS with the bias param set to the zero point for the type and the multiplier set to -2.0. Quads are rendered with fog coordinates starting at -1.4 and increasing by 0.01 per quad.

Image with alpha
Test result for Fog_param::FogParam-2.00-exp_abs
Image as seen on display
No alpha test result for Fog_param::FogParam-2.00-exp_abs

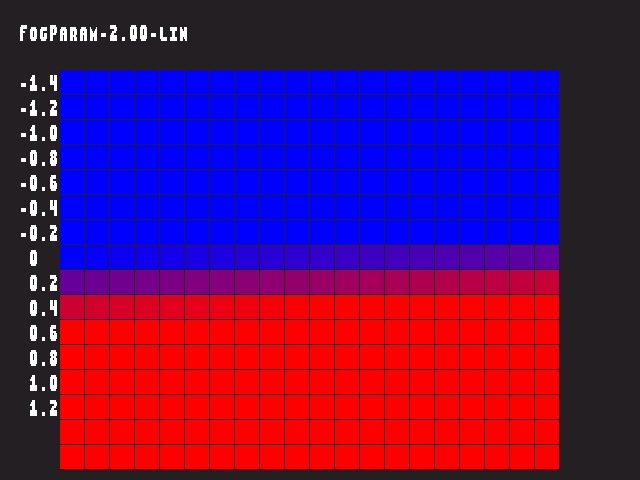

FogParam-2.00-lin

Tests fog mode NV097_SET_FOG_MODE_V_LINEAR with the bias param set to the zero point for the type and the multiplier set to -2.0. Quads are rendered with fog coordinates starting at -1.4 and increasing by 0.01 per quad.

Image with alpha
Test result for Fog_param::FogParam-2.00-lin
Image as seen on display
No alpha test result for Fog_param::FogParam-2.00-lin

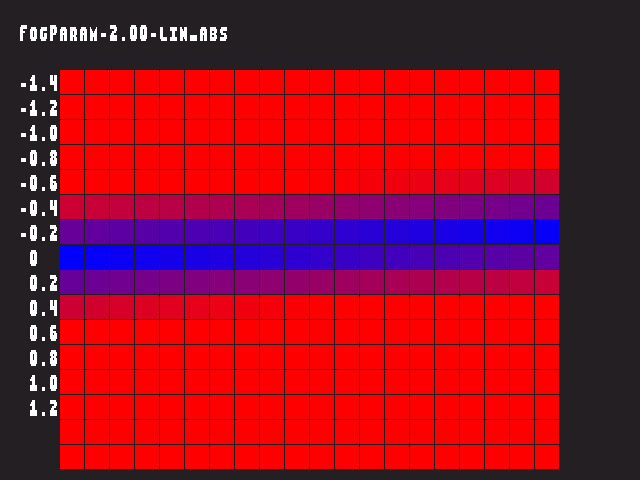

FogParam-2.00-lin_abs

Tests fog mode NV097_SET_FOG_MODE_V_LINEAR_ABS with the bias param set to the zero point for the type and the multiplier set to -2.0. Quads are rendered with fog coordinates starting at -1.4 and increasing by 0.01 per quad.

Image with alpha
Test result for Fog_param::FogParam-2.00-lin_abs
Image as seen on display
No alpha test result for Fog_param::FogParam-2.00-lin_abs

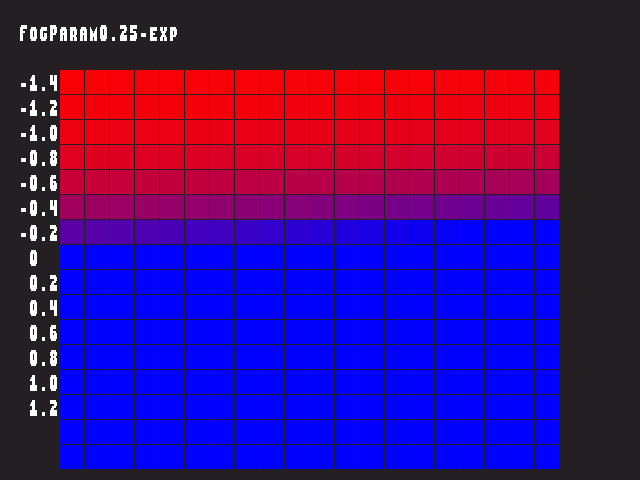

FogParam0.25-exp

Tests fog mode NV097_SET_FOG_MODE_V_EXP with the bias param set to the zero point for the type and the multiplier set to 0.25. Quads are rendered with fog coordinates starting at -1.4 and increasing by 0.01 per quad.

Image with alpha
Test result for Fog_param::FogParam0.25-exp
Image as seen on display
No alpha test result for Fog_param::FogParam0.25-exp

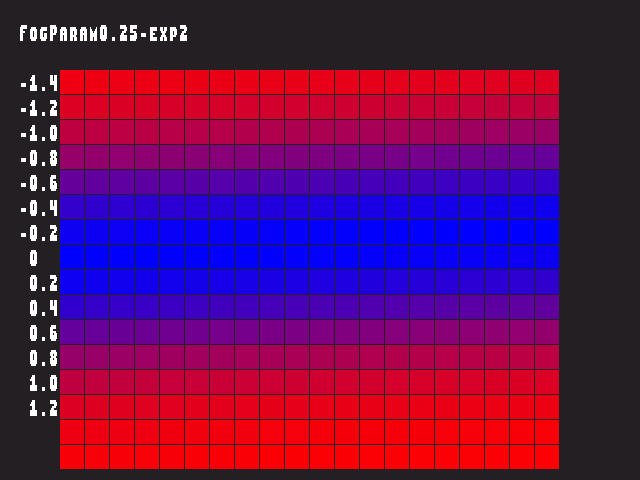

FogParam0.25-exp2

Tests fog mode NV097_SET_FOG_MODE_V_EXP2 with the bias param set to the zero point for the type and the multiplier set to 0.25. Quads are rendered with fog coordinates starting at -1.4 and increasing by 0.01 per quad.

Image with alpha
Test result for Fog_param::FogParam0.25-exp2
Image as seen on display
No alpha test result for Fog_param::FogParam0.25-exp2

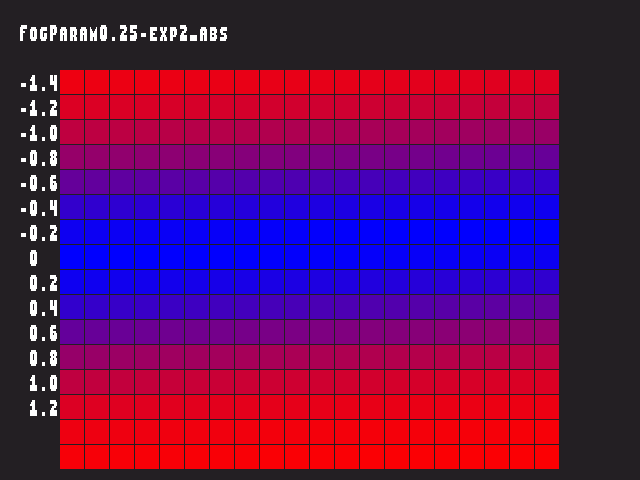

FogParam0.25-exp2_abs

Tests fog mode NV097_SET_FOG_MODE_V_EXP2_ABS with the bias param set to the zero point for the type and the multiplier set to 0.25. Quads are rendered with fog coordinates starting at -1.4 and increasing by 0.01 per quad.

Image with alpha
Test result for Fog_param::FogParam0.25-exp2_abs
Image as seen on display
No alpha test result for Fog_param::FogParam0.25-exp2_abs

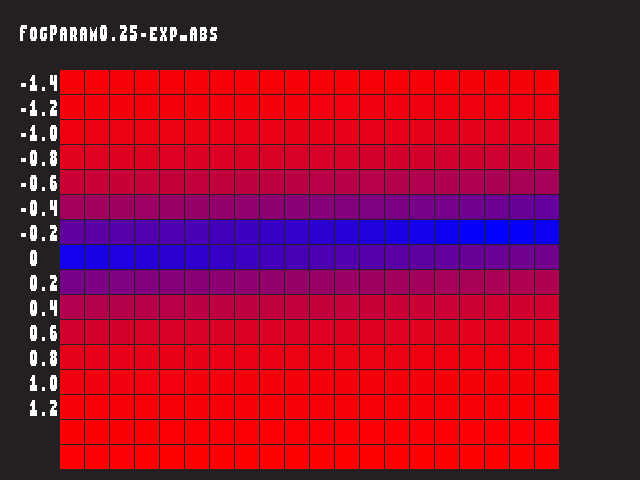

FogParam0.25-exp_abs

Tests fog mode NV097_SET_FOG_MODE_V_EXP_ABS with the bias param set to the zero point for the type and the multiplier set to 0.25. Quads are rendered with fog coordinates starting at -1.4 and increasing by 0.01 per quad.

Image with alpha
Test result for Fog_param::FogParam0.25-exp_abs
Image as seen on display
No alpha test result for Fog_param::FogParam0.25-exp_abs

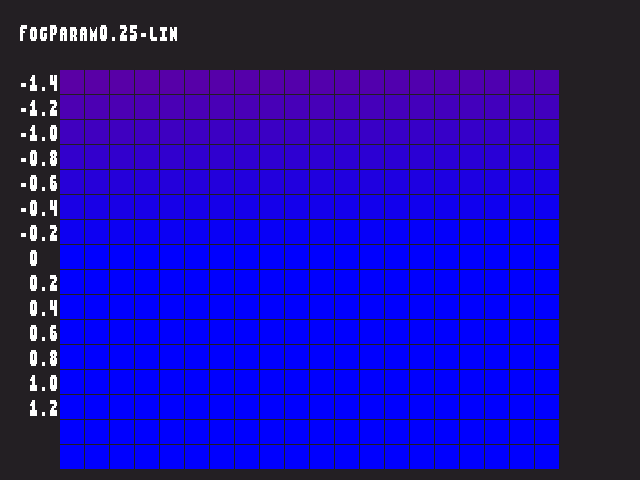

FogParam0.25-lin

Tests fog mode NV097_SET_FOG_MODE_V_LINEAR with the bias param set to the zero point for the type and the multiplier set to 0.25. Quads are rendered with fog coordinates starting at -1.4 and increasing by 0.01 per quad.

Image with alpha
Test result for Fog_param::FogParam0.25-lin
Image as seen on display
No alpha test result for Fog_param::FogParam0.25-lin

FogParam0.25-lin_abs

Tests fog mode NV097_SET_FOG_MODE_V_LINEAR_ABS with the bias param set to the zero point for the type and the multiplier set to 0.25. Quads are rendered with fog coordinates starting at -1.4 and increasing by 0.01 per quad.

Image with alpha
Test result for Fog_param::FogParam0.25-lin_abs
Image as seen on display
No alpha test result for Fog_param::FogParam0.25-lin_abs

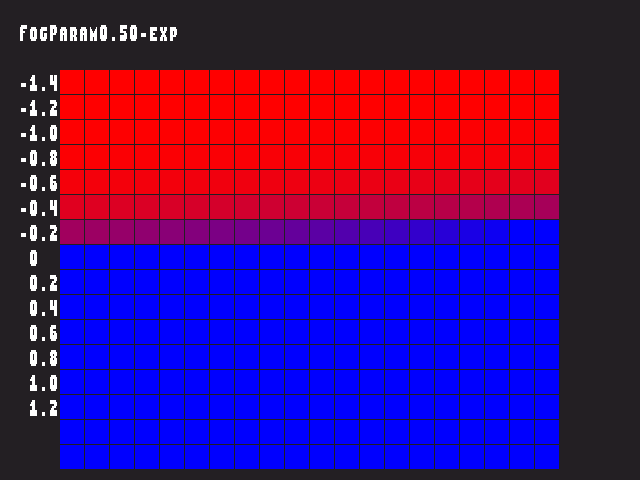

FogParam0.50-exp

Tests fog mode NV097_SET_FOG_MODE_V_EXP with the bias param set to the zero point for the type and the multiplier set to 0.50. Quads are rendered with fog coordinates starting at -1.4 and increasing by 0.01 per quad.

Image with alpha
Test result for Fog_param::FogParam0.50-exp
Image as seen on display
No alpha test result for Fog_param::FogParam0.50-exp

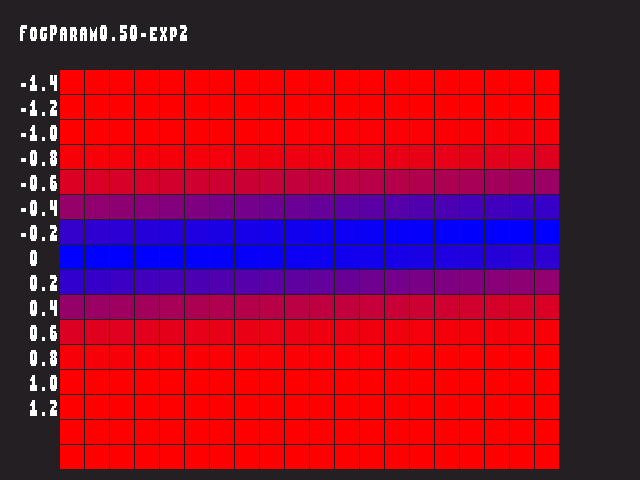

FogParam0.50-exp2

Tests fog mode NV097_SET_FOG_MODE_V_EXP2 with the bias param set to the zero point for the type and the multiplier set to 0.50. Quads are rendered with fog coordinates starting at -1.4 and increasing by 0.01 per quad.

Image with alpha
Test result for Fog_param::FogParam0.50-exp2
Image as seen on display
No alpha test result for Fog_param::FogParam0.50-exp2

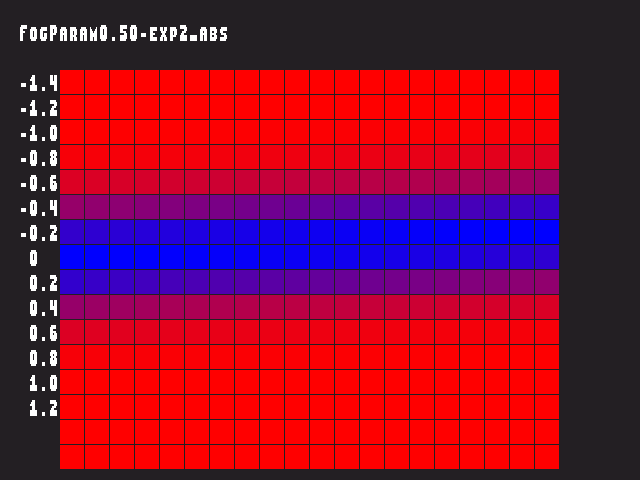

FogParam0.50-exp2_abs

Tests fog mode NV097_SET_FOG_MODE_V_EXP2_ABS with the bias param set to the zero point for the type and the multiplier set to XXXX. Quads are rendered with fog coordinates starting at -1.4 and increasing by 0.01 per quad.

Image with alpha
Test result for Fog_param::FogParam0.50-exp2_abs
Image as seen on display
No alpha test result for Fog_param::FogParam0.50-exp2_abs

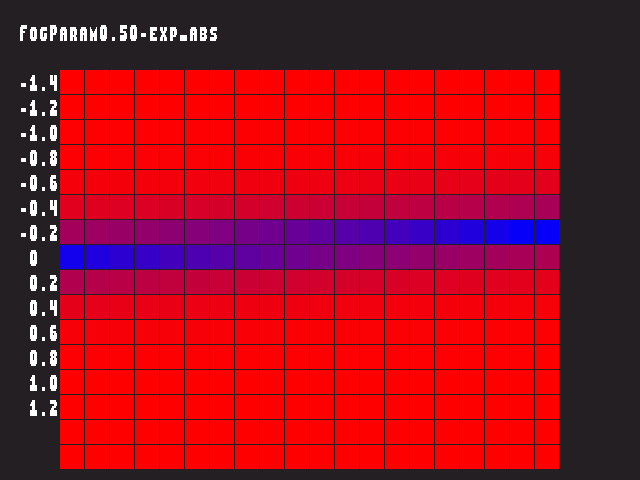

FogParam0.50-exp_abs

Tests fog mode NV097_SET_FOG_MODE_V_EXP_ABS with the bias param set to the zero point for the type and the multiplier set to 0.50. Quads are rendered with fog coordinates starting at -1.4 and increasing by 0.01 per quad.

Image with alpha
Test result for Fog_param::FogParam0.50-exp_abs
Image as seen on display
No alpha test result for Fog_param::FogParam0.50-exp_abs

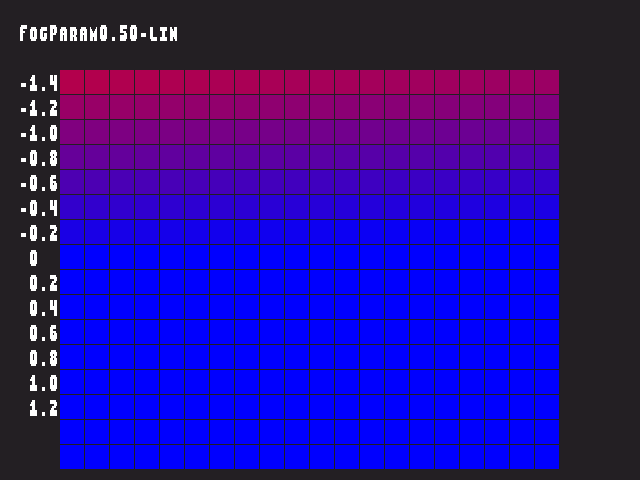

FogParam0.50-lin

Tests fog mode NV097_SET_FOG_MODE_V_LINEAR with the bias param set to the zero point for the type and the multiplier set to 0.50. Quads are rendered with fog coordinates starting at -1.4 and increasing by 0.01 per quad.

Image with alpha
Test result for Fog_param::FogParam0.50-lin
Image as seen on display
No alpha test result for Fog_param::FogParam0.50-lin

FogParam0.50-lin_abs

Tests fog mode NV097_SET_FOG_MODE_V_LINEAR_ABS with the bias param set to the zero point for the type and the multiplier set to 0.50. Quads are rendered with fog coordinates starting at -1.4 and increasing by 0.01 per quad.

Image with alpha
Test result for Fog_param::FogParam0.50-lin_abs
Image as seen on display
No alpha test result for Fog_param::FogParam0.50-lin_abs

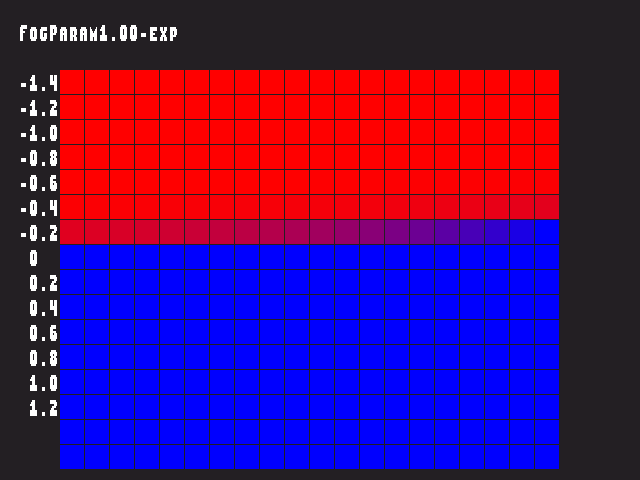

FogParam1.00-exp

Tests fog mode NV097_SET_FOG_MODE_V_EXP with the bias param set to the zero point for the type and the multiplier set to 1.0. Quads are rendered with fog coordinates starting at -1.4 and increasing by 0.01 per quad.

Image with alpha
Test result for Fog_param::FogParam1.00-exp
Image as seen on display
No alpha test result for Fog_param::FogParam1.00-exp

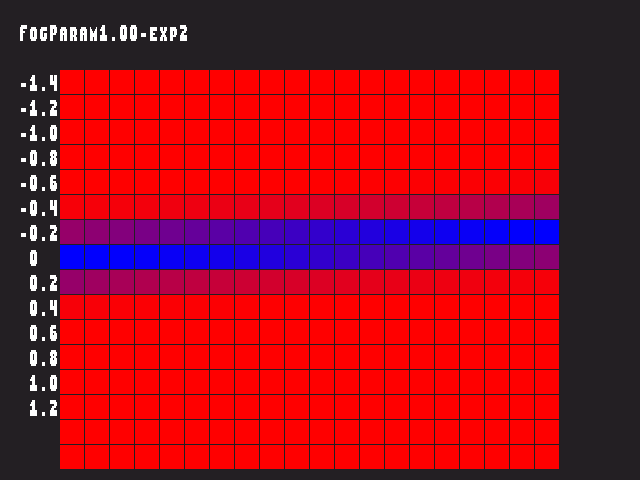

FogParam1.00-exp2

Tests fog mode NV097_SET_FOG_MODE_V_EXP2 with the bias param set to the zero point for the type and the multiplier set to 1.0. Quads are rendered with fog coordinates starting at -1.4 and increasing by 0.01 per quad.

Image with alpha
Test result for Fog_param::FogParam1.00-exp2
Image as seen on display
No alpha test result for Fog_param::FogParam1.00-exp2

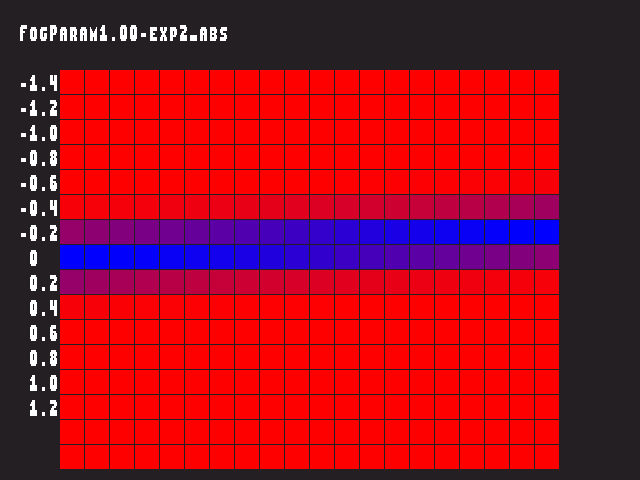

FogParam1.00-exp2_abs

Tests fog mode NV097_SET_FOG_MODE_V_EXP2_ABS with the bias param set to the zero point for the type and the multiplier set to 1.0. Quads are rendered with fog coordinates starting at -1.4 and increasing by 0.01 per quad.

Image with alpha
Test result for Fog_param::FogParam1.00-exp2_abs
Image as seen on display
No alpha test result for Fog_param::FogParam1.00-exp2_abs

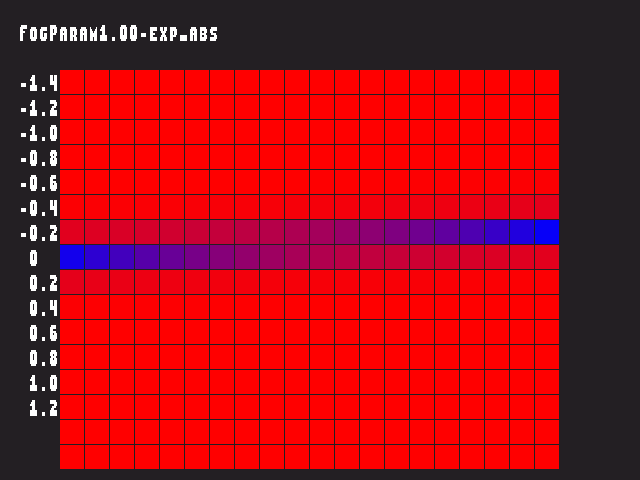

FogParam1.00-exp_abs

Tests fog mode NV097_SET_FOG_MODE_V_EXP_ABS with the bias param set to the zero point for the type and the multiplier set to 1.0. Quads are rendered with fog coordinates starting at -1.4 and increasing by 0.01 per quad.

Image with alpha
Test result for Fog_param::FogParam1.00-exp_abs
Image as seen on display
No alpha test result for Fog_param::FogParam1.00-exp_abs

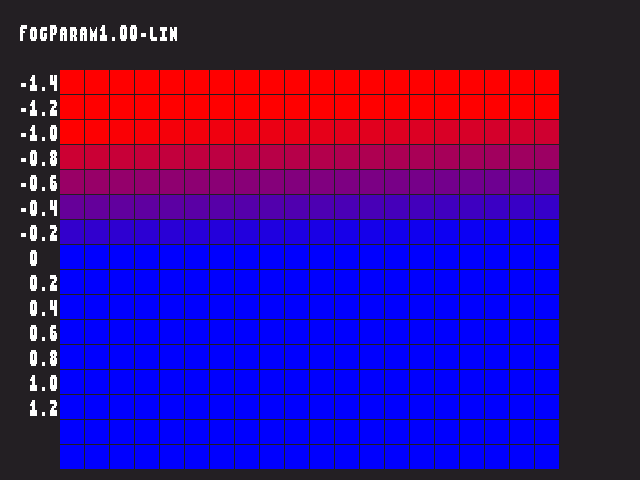

FogParam1.00-lin

Tests fog mode NV097_SET_FOG_MODE_V_LINEAR with the bias param set to the zero point for the type and the multiplier set to 1.0. Quads are rendered with fog coordinates starting at -1.4 and increasing by 0.01 per quad.

Image with alpha
Test result for Fog_param::FogParam1.00-lin
Image as seen on display
No alpha test result for Fog_param::FogParam1.00-lin

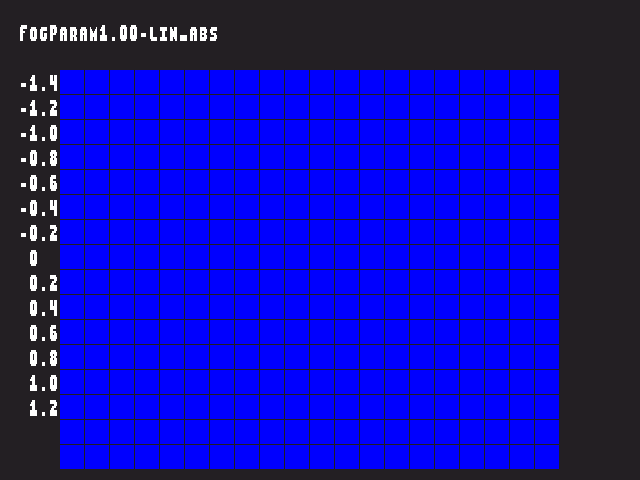

FogParam1.00-lin_abs

Tests fog mode NV097_SET_FOG_MODE_V_LINEAR_ABS with the bias param set to the zero point for the type and the multiplier set to 1.0. Quads are rendered with fog coordinates starting at -1.4 and increasing by 0.01 per quad.

Image with alpha
Test result for Fog_param::FogParam1.00-lin_abs
Image as seen on display
No alpha test result for Fog_param::FogParam1.00-lin_abs

FogParam2.00-exp

Tests fog mode NV097_SET_FOG_MODE_V_EXP with the bias param set to the zero point for the type and the multiplier set to 2.0. Quads are rendered with fog coordinates starting at -1.4 and increasing by 0.01 per quad.

Image with alpha
Test result for Fog_param::FogParam2.00-exp
Image as seen on display
No alpha test result for Fog_param::FogParam2.00-exp

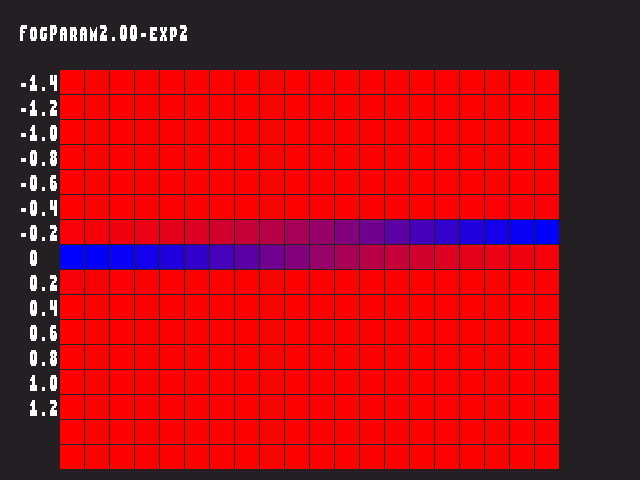

FogParam2.00-exp2

Tests fog mode NV097_SET_FOG_MODE_V_EXP2 with the bias param set to the zero point for the type and the multiplier set to 2.0. Quads are rendered with fog coordinates starting at -1.4 and increasing by 0.01 per quad.

Image with alpha
Test result for Fog_param::FogParam2.00-exp2
Image as seen on display
No alpha test result for Fog_param::FogParam2.00-exp2

FogParam2.00-exp2_abs

Tests fog mode NV097_SET_FOG_MODE_V_EXP2_ABS with the bias param set to the zero point for the type and the multiplier set to 2.0. Quads are rendered with fog coordinates starting at -1.4 and increasing by 0.01 per quad.

Image with alpha
Test result for Fog_param::FogParam2.00-exp2_abs
Image as seen on display
No alpha test result for Fog_param::FogParam2.00-exp2_abs

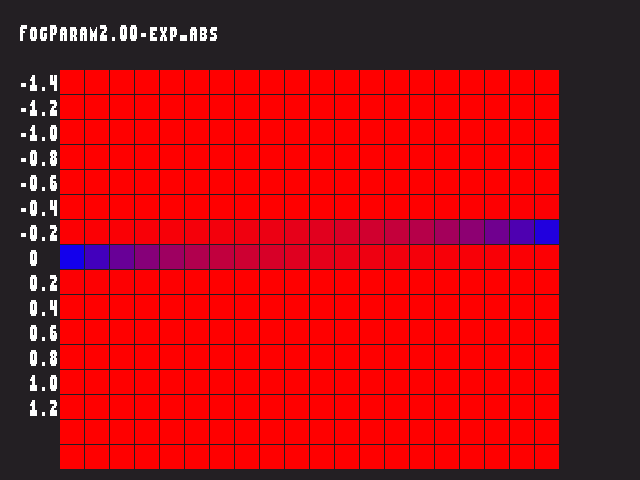

FogParam2.00-exp_abs

Tests fog mode NV097_SET_FOG_MODE_V_EXP_ABS with the bias param set to the zero point for the type and the multiplier set to 2.0. Quads are rendered with fog coordinates starting at -1.4 and increasing by 0.01 per quad.

Image with alpha
Test result for Fog_param::FogParam2.00-exp_abs
Image as seen on display
No alpha test result for Fog_param::FogParam2.00-exp_abs

FogParam2.00-lin

Tests fog mode NV097_SET_FOG_MODE_V_LINEAR with the bias param set to the zero point for the type and the multiplier set to 2.0. Quads are rendered with fog coordinates starting at -1.4 and increasing by 0.01 per quad.

Image with alpha
Test result for Fog_param::FogParam2.00-lin
Image as seen on display
No alpha test result for Fog_param::FogParam2.00-lin

FogParam2.00-lin_abs

Tests fog mode NV097_SET_FOG_MODE_V_LINEAR_ABS with the bias param set to the zero point for the type and the multiplier set to 2.0. Quads are rendered with fog coordinates starting at -1.4 and increasing by 0.01 per quad.

Image with alpha
Test result for Fog_param::FogParam2.00-lin_abs
Image as seen on display
No alpha test result for Fog_param::FogParam2.00-lin_abs

FogZeroBias-exp

Tests the bias parameter for NV097_SET_FOG_MODE_V_EXP. Renders a series of quads and increments the bias fog param by 0.005 for each, starting at 1.0. The multiplier params are set to 0 so the fog coord (1.0) is irrelevant.

Image with alpha
Test result for Fog_param::FogZeroBias-exp
Image as seen on display
No alpha test result for Fog_param::FogZeroBias-exp

FogZeroBias-exp2

Tests the bias parameter for NV097_SET_FOG_MODE_V_EXP2. Renders a series of quads and increments the bias fog param by 0.005 for each, starting at 1.0. The multiplier params are set to 0 so the fog coord (1.0) is irrelevant.

Image with alpha
Test result for Fog_param::FogZeroBias-exp2
Image as seen on display
No alpha test result for Fog_param::FogZeroBias-exp2

FogZeroBias-exp2_abs

Tests the bias parameter for NV097_SET_FOG_MODE_V_EXP2_ABS. Renders a series of quads and increments the bias fog param by 0.005 for each, starting at 1.0. The multiplier params are set to 0 so the fog coord (1.0) is irrelevant.

Image with alpha
Test result for Fog_param::FogZeroBias-exp2_abs
Image as seen on display
No alpha test result for Fog_param::FogZeroBias-exp2_abs

FogZeroBias-exp_abs

Tests the bias parameter for NV097_SET_FOG_MODE_V_EXP_ABS. Renders a series of quads and increments the bias fog param by 0.005 for each, starting at 1.0. The multiplier params are set to 0 so the fog coord (1.0) is irrelevant.

Image with alpha
Test result for Fog_param::FogZeroBias-exp_abs
Image as seen on display
No alpha test result for Fog_param::FogZeroBias-exp_abs

FogZeroBias-lin

Tests the bias parameter for NV097_SET_FOG_MODE_V_LINEAR. Renders a series of quads and increments the bias fog param by 0.005 for each, starting at 1.0. The multiplier params are set to 0 so the fog coord (1.0) is irrelevant.

Image with alpha
Test result for Fog_param::FogZeroBias-lin
Image as seen on display
No alpha test result for Fog_param::FogZeroBias-lin

FogZeroBias-lin_abs

Tests the bias parameter for NV097_SET_FOG_MODE_V_LINEAR_ABS. Renders a series of quads and increments the bias fog param by 0.005 for each, starting at 1.0. The multiplier params are set to 0 so the fog coord (1.0) is irrelevant.

Image with alpha
Test result for Fog_param::FogZeroBias-lin_abs
Image as seen on display
No alpha test result for Fog_param::FogZeroBias-lin_abs
