Front_face

Description
Tests handling of NV097_SET_FRONT_FACE and NV097_SET_CULL_FACE, including degenerate winding values.
Suite class def
src/tests/front_face_tests.h

FrontFace_0x00_CF_B

Image with alpha
Test result for Front_face::FrontFace_0x00_CF_B
Image as seen on display
No alpha test result for Front_face::FrontFace_0x00_CF_B

FrontFace_0x00_CF_F

Image with alpha
Test result for Front_face::FrontFace_0x00_CF_F
Image as seen on display
No alpha test result for Front_face::FrontFace_0x00_CF_F

FrontFace_0x00_CF_FaB

Image with alpha
Test result for Front_face::FrontFace_0x00_CF_FaB
Image as seen on display
No alpha test result for Front_face::FrontFace_0x00_CF_FaB

FrontFace_0x63_CF_B

Image with alpha
Test result for Front_face::FrontFace_0x63_CF_B
Image as seen on display
No alpha test result for Front_face::FrontFace_0x63_CF_B

FrontFace_0x63_CF_F

Image with alpha
Test result for Front_face::FrontFace_0x63_CF_F
Image as seen on display
No alpha test result for Front_face::FrontFace_0x63_CF_F

FrontFace_0x63_CF_FaB

Image with alpha
Test result for Front_face::FrontFace_0x63_CF_FaB
Image as seen on display
No alpha test result for Front_face::FrontFace_0x63_CF_FaB

FrontFace_CCW_CF_B

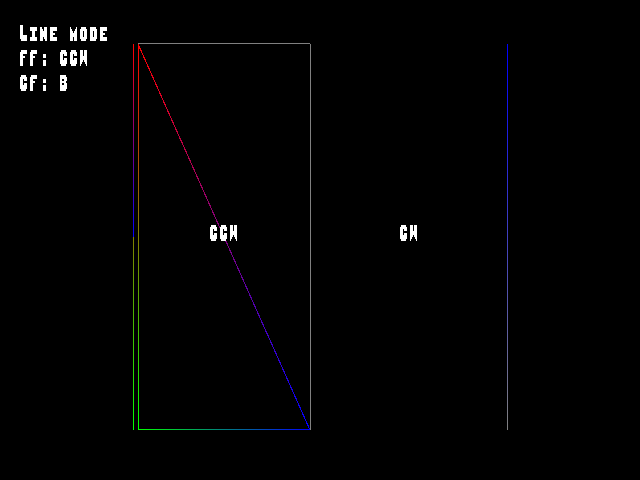

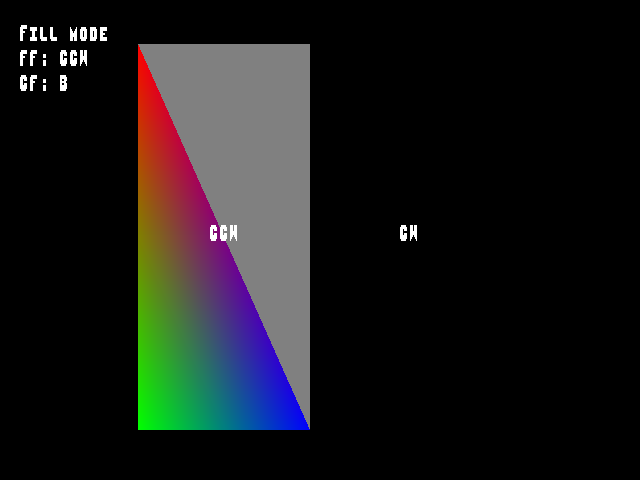

Sets the winding to counter-clockwise with back faces culled. Prior to starting the test, NV097_SET_FRONT_FACE is set to CW. Only the left quad should be rendered.

Image with alpha
Test result for Front_face::FrontFace_CCW_CF_B
Image as seen on display
No alpha test result for Front_face::FrontFace_CCW_CF_B

FrontFace_CCW_CF_F

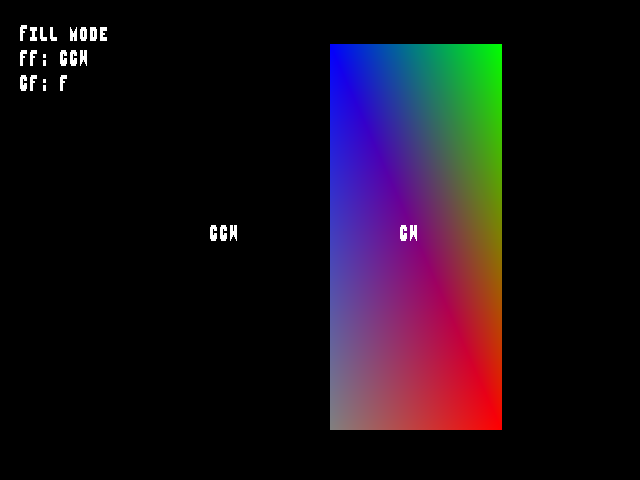

Sets the winding to counter-clockwise with front faces culled. Prior to starting the test, NV097_SET_FRONT_FACE is set to CW. Only the right quad should be rendered.

Image with alpha
Test result for Front_face::FrontFace_CCW_CF_F
Image as seen on display
No alpha test result for Front_face::FrontFace_CCW_CF_F

FrontFace_CCW_CF_FaB

Sets the winding to counter-clockwise with front and back faces culled. Prior to starting the test, NV097_SET_FRONT_FACE is set to CW. Neither quad should be rendered.

Image with alpha
Test result for Front_face::FrontFace_CCW_CF_FaB
Image as seen on display
No alpha test result for Front_face::FrontFace_CCW_CF_FaB

FrontFace_CW_CF_B

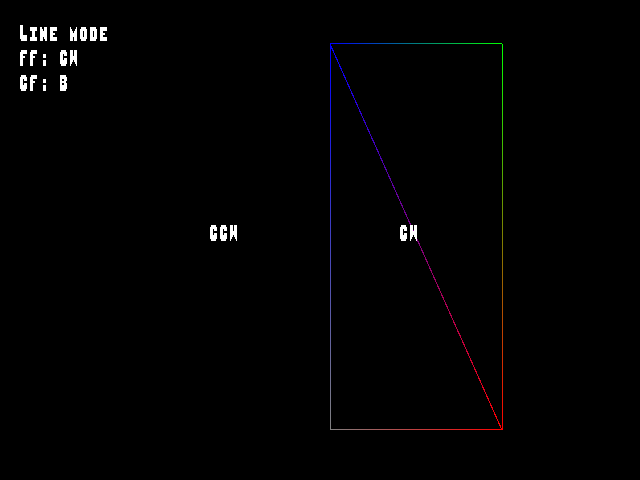

Sets the winding to clockwise with back faces culled. Prior to starting the test, NV097_SET_FRONT_FACE is set to CCW. Only the right quad should be rendered.

Image with alpha
Test result for Front_face::FrontFace_CW_CF_B
Image as seen on display
No alpha test result for Front_face::FrontFace_CW_CF_B

FrontFace_CW_CF_F

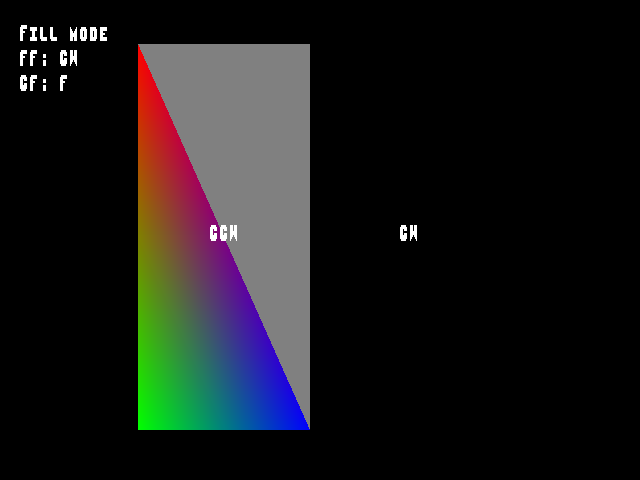

Sets the winding to clockwise with front faces culled. Prior to starting the test, NV097_SET_FRONT_FACE is set to CCW. Only the left quad should be rendered.

Image with alpha
Test result for Front_face::FrontFace_CW_CF_F
Image as seen on display
No alpha test result for Front_face::FrontFace_CW_CF_F

FrontFace_CW_CF_FaB

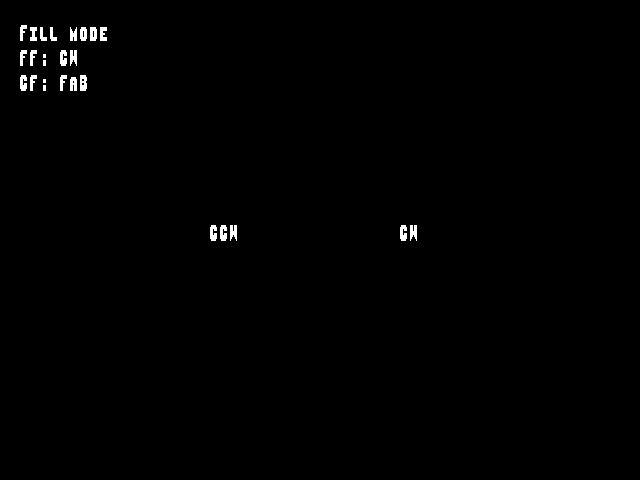

Sets the winding to clockwise with front and back faces culled. Prior to starting the test, NV097_SET_FRONT_FACE is set to CCW. Neither quad should be rendered.

Image with alpha
Test result for Front_face::FrontFace_CW_CF_FaB
Image as seen on display
No alpha test result for Front_face::FrontFace_CW_CF_FaB
