Navigate to the top level

Texture_render_target

Suite class def
src/tests/texture_render_target_tests.h

RenderTextureClearLoop

Exercises the xemu texture cache invalidation defect (xemu #2036) triggered by rendering into a swizzled surface, sampling it as a texture (which causes xemu to blit the GPU surface into the GL texture via surf_to_tex while retaining the pre-render RAM hash in binding->data_hash), then clearing that surface as a linear surface back to black. Displays three quads side-by-side:

Image with alpha
Test result for Texture_render_target::RenderTextureClearLoop
Image as seen on display
No alpha test result for Texture_render_target::RenderTextureClearLoop

RenderTextureLoop

Renders Blue, Green, and Red into a surface sequentially, texturing separate screen quads to verify render-to-texture loop updates.

Image with alpha
Test result for Texture_render_target::RenderTextureLoop
Image as seen on display
No alpha test result for Texture_render_target::RenderTextureLoop

TexFmt_A1R5G5B5

Renders a gradient pattern to a surface with A1R5G5B5 swizzled texture format and samples it onto a screen quad.

Image with alpha
Test result for Texture_render_target::TexFmt_A1R5G5B5
Image as seen on display
No alpha test result for Texture_render_target::TexFmt_A1R5G5B5

TexFmt_A1R5G5B5_L

Renders a gradient pattern to a surface with A1R5G5B5 linear texture format and samples it onto a screen quad.

Image with alpha
Test result for Texture_render_target::TexFmt_A1R5G5B5_L
Image as seen on display
No alpha test result for Texture_render_target::TexFmt_A1R5G5B5_L

TexFmt_A4R4G4B4

Renders a gradient pattern to a surface with A4R4G4B4 swizzled texture format and samples it onto a screen quad.

Image with alpha
Test result for Texture_render_target::TexFmt_A4R4G4B4
Image as seen on display
No alpha test result for Texture_render_target::TexFmt_A4R4G4B4

TexFmt_A4R4G4B4_L

Renders a gradient pattern to a surface with A4R4G4B4 linear texture format and samples it onto a screen quad.

Image with alpha
Test result for Texture_render_target::TexFmt_A4R4G4B4_L
Image as seen on display
No alpha test result for Texture_render_target::TexFmt_A4R4G4B4_L

TexFmt_A8

Image with alpha
Test result for Texture_render_target::TexFmt_A8
Image as seen on display
No alpha test result for Texture_render_target::TexFmt_A8

TexFmt_A8_L

Image with alpha
Test result for Texture_render_target::TexFmt_A8_L
Image as seen on display
No alpha test result for Texture_render_target::TexFmt_A8_L

TexFmt_A8B8G8R8

Renders a gradient pattern to a surface with A8B8G8R8 swizzled texture format and samples it onto a screen quad.

Image with alpha
Test result for Texture_render_target::TexFmt_A8B8G8R8
Image as seen on display
No alpha test result for Texture_render_target::TexFmt_A8B8G8R8

TexFmt_A8B8G8R8_L

Renders a gradient pattern to a surface with A8B8G8R8 linear texture format and samples it onto a screen quad.

Image with alpha
Test result for Texture_render_target::TexFmt_A8B8G8R8_L
Image as seen on display
No alpha test result for Texture_render_target::TexFmt_A8B8G8R8_L

TexFmt_A8R8G8B8

Renders a gradient pattern to a surface with A8R8G8B8 swizzled texture format and samples it onto a screen quad.

Image with alpha
Test result for Texture_render_target::TexFmt_A8R8G8B8
Image as seen on display
No alpha test result for Texture_render_target::TexFmt_A8R8G8B8

TexFmt_A8R8G8B8_L

Renders a gradient pattern to a surface with A8R8G8B8 linear texture format and samples it onto a screen quad.

Image with alpha
Test result for Texture_render_target::TexFmt_A8R8G8B8_L
Image as seen on display
No alpha test result for Texture_render_target::TexFmt_A8R8G8B8_L

TexFmt_A8Y8

Image with alpha
Test result for Texture_render_target::TexFmt_A8Y8
Image as seen on display
No alpha test result for Texture_render_target::TexFmt_A8Y8

TexFmt_AY8

Image with alpha
Test result for Texture_render_target::TexFmt_AY8
Image as seen on display
No alpha test result for Texture_render_target::TexFmt_AY8

TexFmt_AY8_L

Image with alpha
Test result for Texture_render_target::TexFmt_AY8_L
Image as seen on display
No alpha test result for Texture_render_target::TexFmt_AY8_L

TexFmt_B8G8R8A8

Renders a gradient pattern to a surface with B8G8R8A8 swizzled texture format and samples it onto a screen quad.

Image with alpha
Test result for Texture_render_target::TexFmt_B8G8R8A8
Image as seen on display
No alpha test result for Texture_render_target::TexFmt_B8G8R8A8

TexFmt_B8G8R8A8_L

Renders a gradient pattern to a surface with B8G8R8A8 linear texture format and samples it onto a screen quad.

Image with alpha
Test result for Texture_render_target::TexFmt_B8G8R8A8_L
Image as seen on display
No alpha test result for Texture_render_target::TexFmt_B8G8R8A8_L

TexFmt_DXT1

Image with alpha
Test result for Texture_render_target::TexFmt_DXT1
Image as seen on display
No alpha test result for Texture_render_target::TexFmt_DXT1

TexFmt_G8B8

Image with alpha
Test result for Texture_render_target::TexFmt_G8B8
Image as seen on display
No alpha test result for Texture_render_target::TexFmt_G8B8

TexFmt_G8B8_L

Renders a gradient pattern to a surface with G8B8 linear texture format and samples it onto a screen quad.

Image with alpha
Test result for Texture_render_target::TexFmt_G8B8_L
Image as seen on display
No alpha test result for Texture_render_target::TexFmt_G8B8_L

TexFmt_R16B16

Renders a gradient pattern to a surface with R16B16 swizzled texture format and samples it onto a screen quad.

Image with alpha
Test result for Texture_render_target::TexFmt_R16B16
Image as seen on display
No alpha test result for Texture_render_target::TexFmt_R16B16

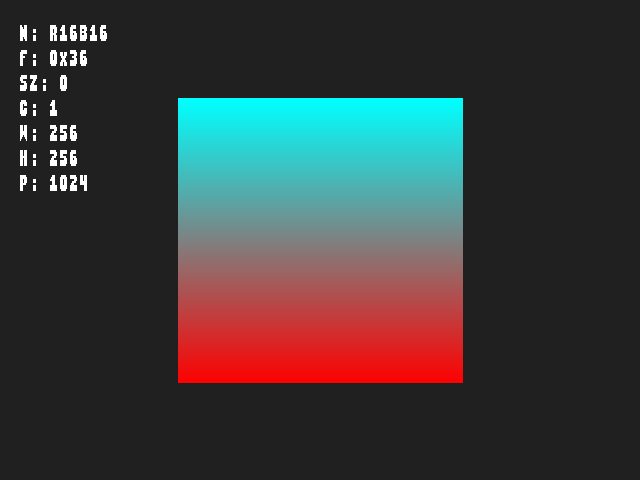

TexFmt_R16B16_L

Renders a gradient pattern to a surface with R16B16 linear texture format and samples it onto a screen quad.

Image with alpha
Test result for Texture_render_target::TexFmt_R16B16_L
Image as seen on display
No alpha test result for Texture_render_target::TexFmt_R16B16_L

TexFmt_R5G6B5

Renders a gradient pattern to a surface with R5G6B5 swizzled texture format and samples it onto a screen quad.

Image with alpha
Test result for Texture_render_target::TexFmt_R5G6B5
Image as seen on display
No alpha test result for Texture_render_target::TexFmt_R5G6B5

TexFmt_R5G6B5_L

Renders a gradient pattern to a surface with R5G6B5 linear texture format and samples it onto a screen quad.

Image with alpha
Test result for Texture_render_target::TexFmt_R5G6B5_L
Image as seen on display
No alpha test result for Texture_render_target::TexFmt_R5G6B5_L

TexFmt_R6G5B5

Image with alpha
Test result for Texture_render_target::TexFmt_R6G5B5
Image as seen on display
No alpha test result for Texture_render_target::TexFmt_R6G5B5

TexFmt_R8B8

Image with alpha
Test result for Texture_render_target::TexFmt_R8B8
Image as seen on display
No alpha test result for Texture_render_target::TexFmt_R8B8

TexFmt_R8G8B8A8

Renders a gradient pattern to a surface with R8G8B8A8 swizzled texture format and samples it onto a screen quad.

Image with alpha
Test result for Texture_render_target::TexFmt_R8G8B8A8
Image as seen on display
No alpha test result for Texture_render_target::TexFmt_R8G8B8A8

TexFmt_R8G8B8A8_L

Renders a gradient pattern to a surface with R8G8B8A8 linear texture format and samples it onto a screen quad.

Image with alpha
Test result for Texture_render_target::TexFmt_R8G8B8A8_L
Image as seen on display
No alpha test result for Texture_render_target::TexFmt_R8G8B8A8_L

TexFmt_SZ_Index8_p128

Image with alpha
Test result for Texture_render_target::TexFmt_SZ_Index8_p128
Image as seen on display
No alpha test result for Texture_render_target::TexFmt_SZ_Index8_p128

TexFmt_SZ_Index8_p256

Image with alpha
Test result for Texture_render_target::TexFmt_SZ_Index8_p256
Image as seen on display
No alpha test result for Texture_render_target::TexFmt_SZ_Index8_p256

TexFmt_SZ_Index8_p32

Image with alpha
Test result for Texture_render_target::TexFmt_SZ_Index8_p32
Image as seen on display
No alpha test result for Texture_render_target::TexFmt_SZ_Index8_p32

TexFmt_SZ_Index8_p64

Image with alpha
Test result for Texture_render_target::TexFmt_SZ_Index8_p64
Image as seen on display
No alpha test result for Texture_render_target::TexFmt_SZ_Index8_p64

TexFmt_UYVY_L

Renders a gradient pattern to a surface with UYVY linear texture format and samples it onto a screen quad.

Image with alpha
Test result for Texture_render_target::TexFmt_UYVY_L
Image as seen on display
No alpha test result for Texture_render_target::TexFmt_UYVY_L

TexFmt_X1R5G5B5

Renders a gradient pattern to a surface with X1R5G5B5 swizzled texture format and samples it onto a screen quad.

Image with alpha
Test result for Texture_render_target::TexFmt_X1R5G5B5
Image as seen on display
No alpha test result for Texture_render_target::TexFmt_X1R5G5B5

TexFmt_X1R5G5B5_L

Renders a gradient pattern to a surface with X1R5G5B5 linear texture format and samples it onto a screen quad.

Image with alpha
Test result for Texture_render_target::TexFmt_X1R5G5B5_L
Image as seen on display
No alpha test result for Texture_render_target::TexFmt_X1R5G5B5_L

TexFmt_X8R8G8B8

Renders a gradient pattern to a surface with X8R8G8B8 swizzled texture format and samples it onto a screen quad.

Image with alpha
Test result for Texture_render_target::TexFmt_X8R8G8B8
Image as seen on display
No alpha test result for Texture_render_target::TexFmt_X8R8G8B8

TexFmt_X8R8G8B8_L

Renders a gradient pattern to a surface with X8R8G8B8 linear texture format and samples it onto a screen quad.

Image with alpha
Test result for Texture_render_target::TexFmt_X8R8G8B8_L
Image as seen on display
No alpha test result for Texture_render_target::TexFmt_X8R8G8B8_L

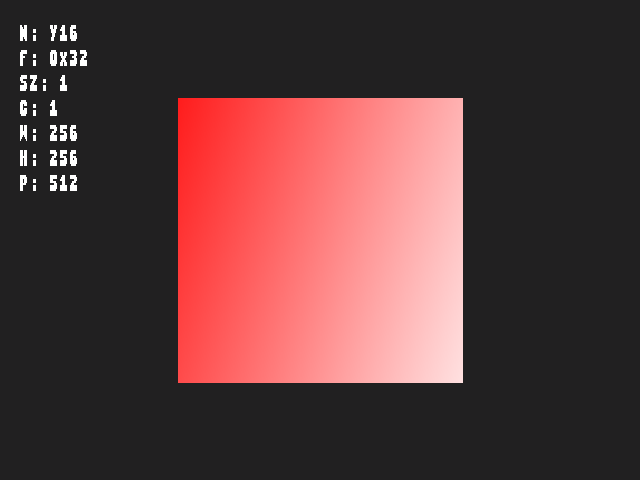

TexFmt_Y16

Renders a gradient pattern to a surface with Y16 swizzled texture format and samples it onto a screen quad.

Image with alpha
Test result for Texture_render_target::TexFmt_Y16
Image as seen on display
No alpha test result for Texture_render_target::TexFmt_Y16

TexFmt_Y16_L

Renders a gradient pattern to a surface with Y16 linear texture format and samples it onto a screen quad.

Image with alpha
Test result for Texture_render_target::TexFmt_Y16_L
Image as seen on display
No alpha test result for Texture_render_target::TexFmt_Y16_L

TexFmt_Y8

Image with alpha
Test result for Texture_render_target::TexFmt_Y8
Image as seen on display
No alpha test result for Texture_render_target::TexFmt_Y8

TexFmt_Y8_L

Image with alpha
Test result for Texture_render_target::TexFmt_Y8_L
Image as seen on display
No alpha test result for Texture_render_target::TexFmt_Y8_L

TexFmt_YUY2_L

Renders a gradient pattern to a surface with YUY2 linear texture format and samples it onto a screen quad.

Image with alpha
Test result for Texture_render_target::TexFmt_YUY2_L
Image as seen on display
No alpha test result for Texture_render_target::TexFmt_YUY2_L
