xemu-0.7.98-master-7bfb7c85378f64f93556c365ea0cc18cb2181dc8:Linux_x86_64:gl_Mesa_NV134:gslv_4.30 vs Xbox_Hardware

2D_Lines

Description

Tests various NV04_SOLID_LINE_* 2D graphics acceleration functions by rendering lines into buffers of different color depths.

Suite class def

src/tests/two_d_line_tests.h

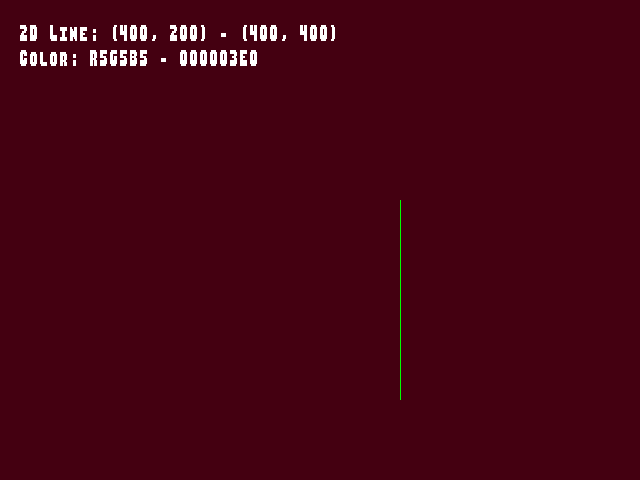

2DLine-15-C000003E0-400_200-400_400

Difference

0.06071414798498154

Description

XRGB 555 color depth - green vertical line from 400, 200 - 400, 400.

Diff result for 2D_Lines::2DLine-15-C000003E0-400_200-400_400

Source

Golden

2DLine-16-C000007E0-400_200-400_400

Difference

0.06071414798498154

Description

XRGB 565 color depth - green vertical line from 400, 200 - 400, 400.

Diff result for 2D_Lines::2DLine-16-C000007E0-400_200-400_400

Source

Golden

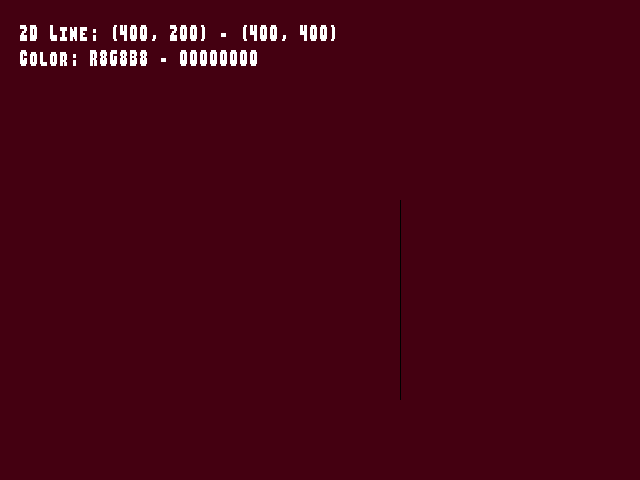

2DLine-24-C00000000-400_200-400_400

Difference

0.03612451255321503

Description

XRGB 888 - black vertical line from 400, 200 - 400, 400

Diff result for 2D_Lines::2DLine-24-C00000000-400_200-400_400

Source

Golden

2DLine-24-C0000FF00-400_200-400_400

Difference

0.06071414798498154

Description

XRGB 888 - green vertical line from 400, 200 - 400, 400

Diff result for 2D_Lines::2DLine-24-C0000FF00-400_200-400_400

Source

Golden

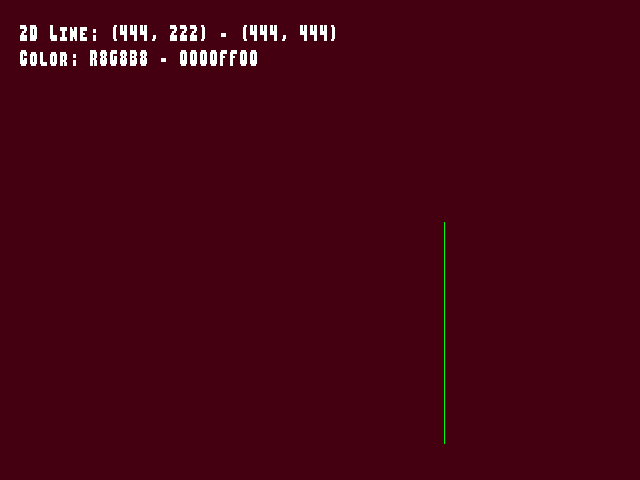

2DLine-24-C0000FF00-444_222-444_444

Difference

0.05987171083688736

Description

XRGB 888 - green vertical line from 444, 222 - 444, 444

Diff result for 2D_Lines::2DLine-24-C0000FF00-444_222-444_444

Source

Golden

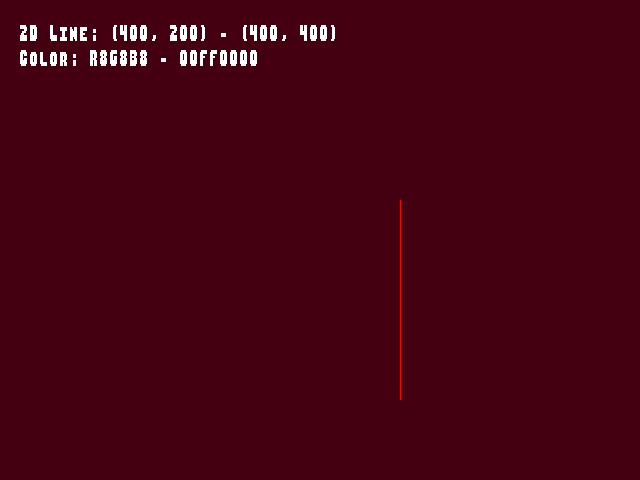

2DLine-24-C00FF0000-400_200-400_400

Difference

0.05237200856208801

Description

XRGB 888 - red vertical line from 400, 200 - 400, 400

Diff result for 2D_Lines::2DLine-24-C00FF0000-400_200-400_400

Source

Golden

2DLine-24-C00FFFFFF-0_0-639_479

Difference

0.16127057373523712

Description

XRGB 888 - white diagonal line from 0, 0, - 639, 479 (one pixel short of bottom right corner)

Diff result for 2D_Lines::2DLine-24-C00FFFFFF-0_0-639_479

Source

Golden

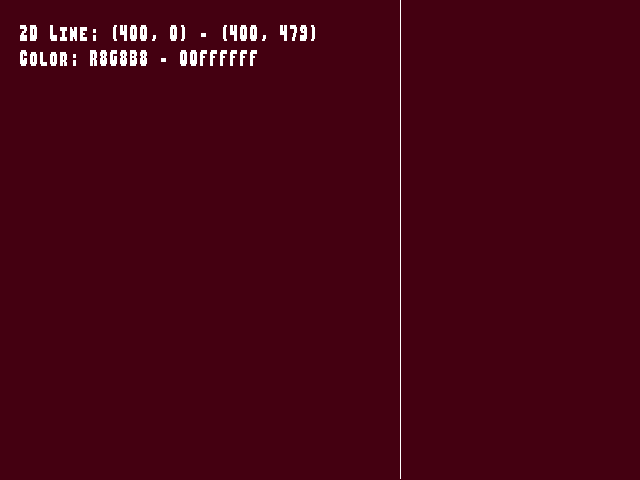

2DLine-24-C00FFFFFF-400_0-400_479

Difference

0.10254403203725815

Description

XRGB 888 - white vertical line from 400, 0 - 400, 479 (one pixel short of bottom)

Diff result for 2D_Lines::2DLine-24-C00FFFFFF-400_0-400_479

Source

Golden

2DLine-24-C00FFFFFF-400_300-400_301

Difference

0.010878780856728554

Description

XRGB 888 - white dot at 400, 300

Diff result for 2D_Lines::2DLine-24-C00FFFFFF-400_300-400_301

Source

Golden

2DLine-24-C00FFFFFF-400_300-401_300

Difference

0.010878780856728554

Description

XRGB 888 - white dot at 400, 300

Diff result for 2D_Lines::2DLine-24-C00FFFFFF-400_300-401_300

Source

Golden

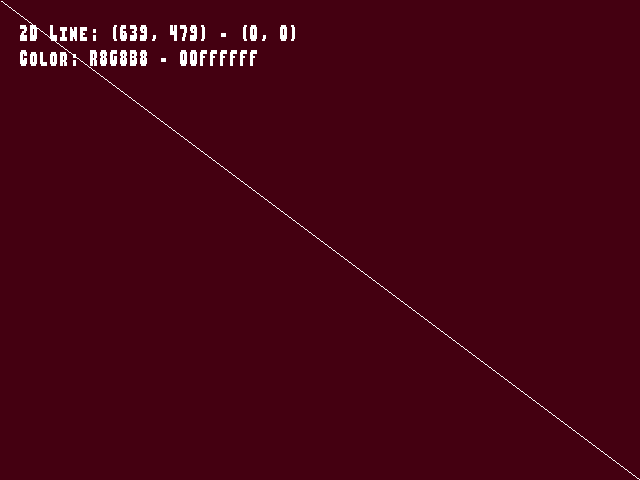

2DLine-24-C00FFFFFF-639_479-0_0

Difference

0.16122575104236603

Description

XRGB 888 - white diagonal line from 639, 479 - 0, 0 (one pixel short of the upper left corner)

Diff result for 2D_Lines::2DLine-24-C00FFFFFF-639_479-0_0

Source

Golden

2DLine-24-CFFFFFFFF-100_100-100_400

Difference

0.0815705731511116

Description

XRGB 888 - white vertical line from 100, 100 - 100, 400 - alpha is ignored

Diff result for 2D_Lines::2DLine-24-CFFFFFFFF-100_100-100_400

Source

Golden

3D_primitive

Description

Tests behavior when rendering various 3D primitives.

Suite class def

src/tests/three_d_primitive_tests.h

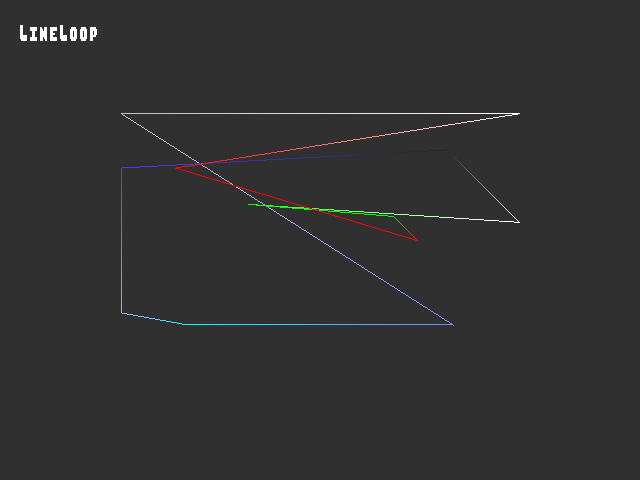

LineLoop

Difference

0.010687621310353279

Description

Draws vertices as a line loop using NV097_DRAW_ARRAYS

Source

Golden

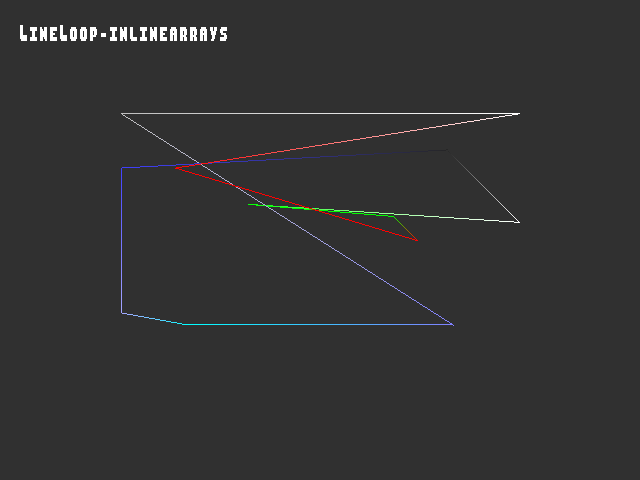

LineLoop-inlinearrays

Difference

0.010687501169741154

Description

Draws vertices as a line loop using NV097_INLINE_ARRAY

Diff result for 3D_primitive::LineLoop-inlinearrays

Source

Golden

LineLoop-inlinearrays-ls

Difference

0.023521114140748978

Description

Draws vertices as a line loop using NV097_INLINE_ARRAY with line smoothing enabled.

Diff result for 3D_primitive::LineLoop-inlinearrays-ls

Source

Golden

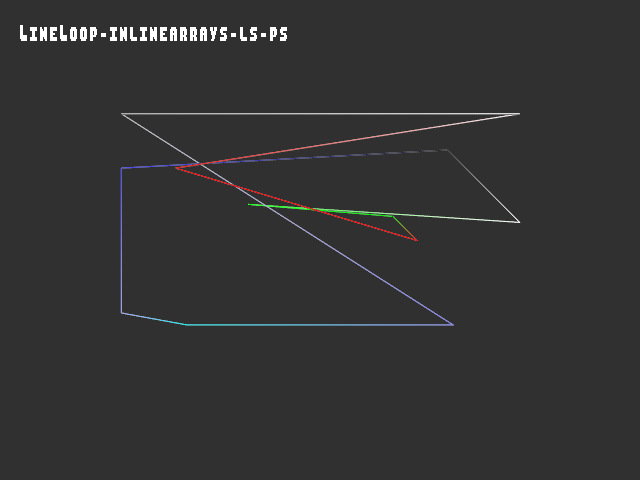

LineLoop-inlinearrays-ls-ps

Difference

0.01134507916867733

Description

Draws vertices as a line loop using NV097_INLINE_ARRAY with line smoothing and polygon smoothing enabled.

Diff result for 3D_primitive::LineLoop-inlinearrays-ls-ps

Source

Golden

LineLoop-inlinearrays-ps

Difference

0.03662861883640289

Description

Draws vertices as a line loop using NV097_INLINE_ARRAY with polygon smoothing enabled.

Diff result for 3D_primitive::LineLoop-inlinearrays-ps

Source

Golden

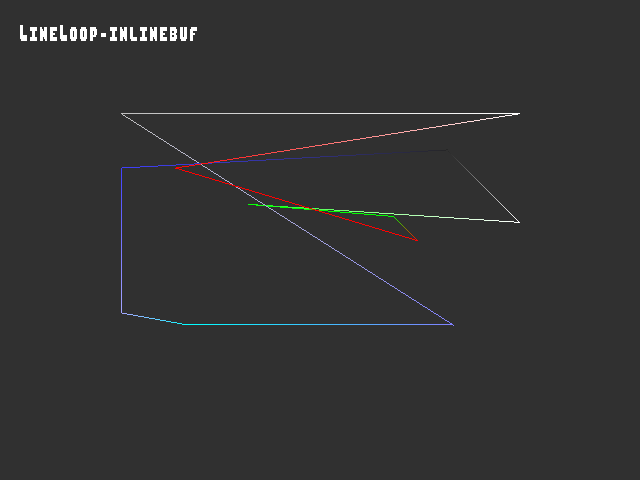

LineLoop-inlinebuf

Difference

0.010687543079257011

Description

Draws vertices as a line loop using NV097_SET_VERTEX3F

Diff result for 3D_primitive::LineLoop-inlinebuf

Source

Golden

LineLoop-inlinebuf-ls

Difference

0.013134793378412724

Description

Draws vertices as a line loop using NV097_SET_VERTEX3F with line smoothing enabled.

Diff result for 3D_primitive::LineLoop-inlinebuf-ls

Source

Golden

LineLoop-inlinebuf-ls-ps

Difference

0.018198098987340927

Description

Draws vertices as a line loop using NV097_SET_VERTEX3F with line smoothing and polygon smoothing enabled.

Diff result for 3D_primitive::LineLoop-inlinebuf-ls-ps

Source

Golden

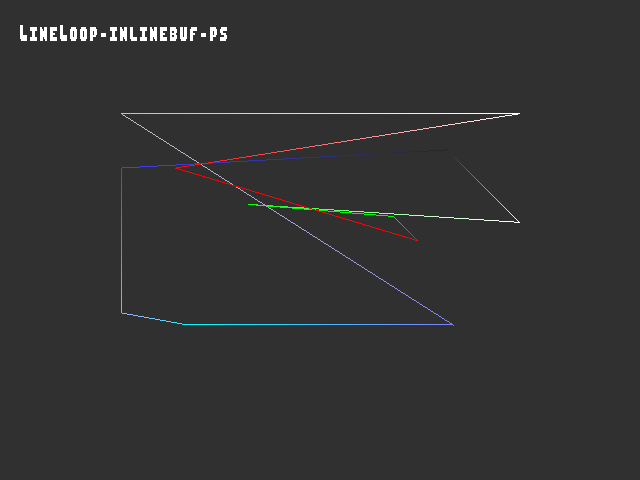

LineLoop-inlinebuf-ps

Difference

0.03662808984518051

Description

Draws vertices as a line loop using NV097_SET_VERTEX3F with polygon smoothing enabled.

Diff result for 3D_primitive::LineLoop-inlinebuf-ps

Source

Golden

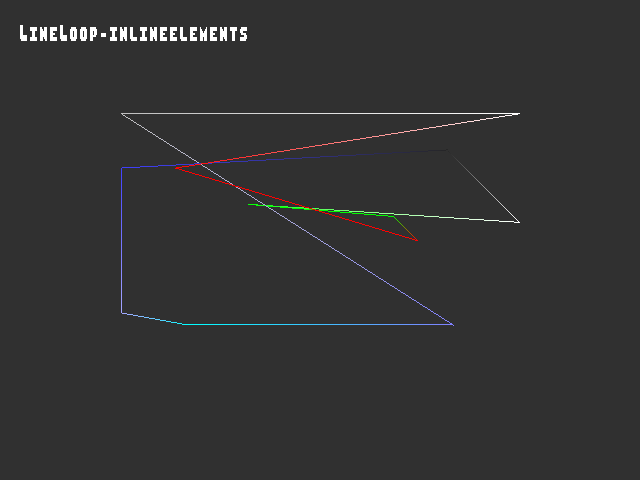

LineLoop-inlineelements

Difference

0.01068747416138649

Description

Draws vertices as a line loop using NV097_ARRAY_ELEMENT16

Diff result for 3D_primitive::LineLoop-inlineelements

Source

Golden

LineLoop-inlineelements-ls

Difference

0.014244823716580868

Description

Draws vertices as a line loop using NV097_ARRAY_ELEMENT16 with line smoothing enabled.

Diff result for 3D_primitive::LineLoop-inlineelements-ls

Source

Golden

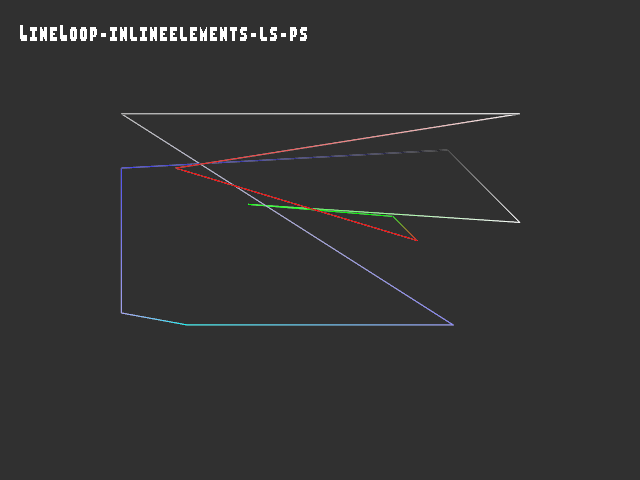

LineLoop-inlineelements-ls-ps

Difference

0.018196824938058853

Description

Draws vertices as a line loop using NV097_ARRAY_ELEMENT16 with line smoothing and polygon smoothing enabled.

Diff result for 3D_primitive::LineLoop-inlineelements-ls-ps

Source

Golden

LineLoop-inlineelements-ps

Difference

0.03662954270839691

Description

Draws vertices as a line loop using NV097_ARRAY_ELEMENT16 with polygon smoothing enabled.

Diff result for 3D_primitive::LineLoop-inlineelements-ps

Source

Golden

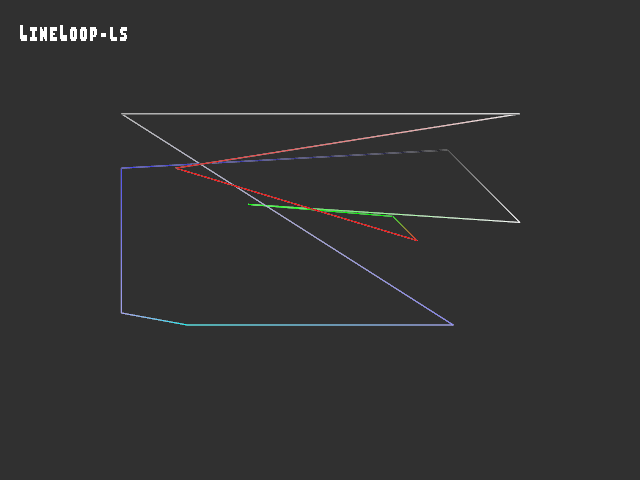

LineLoop-ls

Difference

0.013579717837274075

Description

Draws vertices as a line loop using NV097_DRAW_ARRAYS with line smoothing enabled.

Diff result for 3D_primitive::LineLoop-ls

Source

Golden

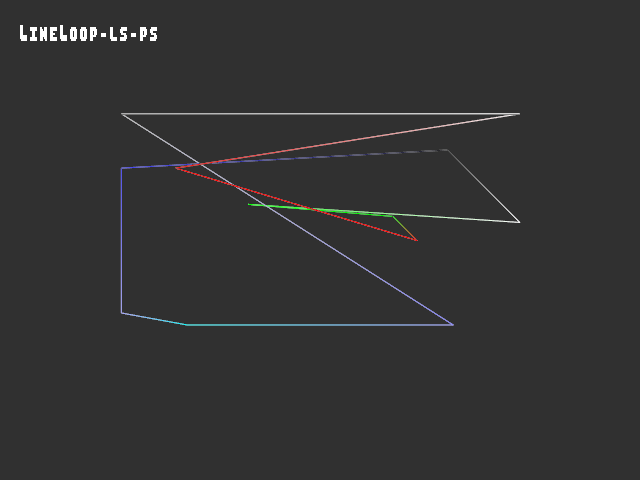

LineLoop-ls-ps

Difference

0.014249671250581741

Description

Draws vertices as a line loop using NV097_DRAW_ARRAYS with line smoothing and polygon smoothing enabled.

Diff result for 3D_primitive::LineLoop-ls-ps

Source

Golden

LineLoop-ps

Difference

0.03663412481546402

Description

Draws vertices as a line loop using NV097_DRAW_ARRAYS with polygon smoothing enabled.

Diff result for 3D_primitive::LineLoop-ps

Source

Golden

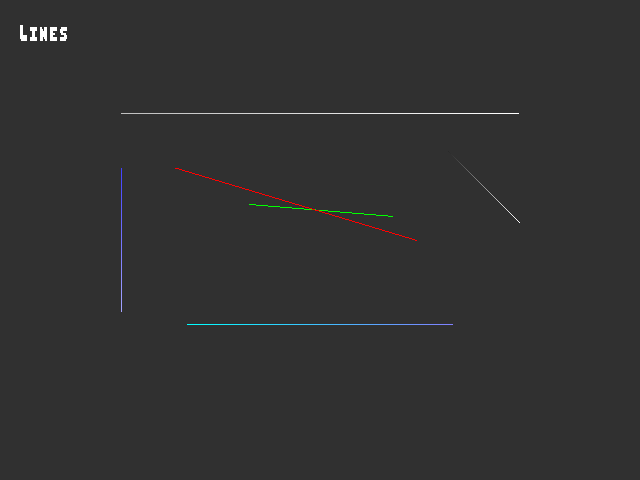

Lines

Difference

0.01268540695309639

Description

Draws vertices as lines using NV097_DRAW_ARRAYS

Source

Golden

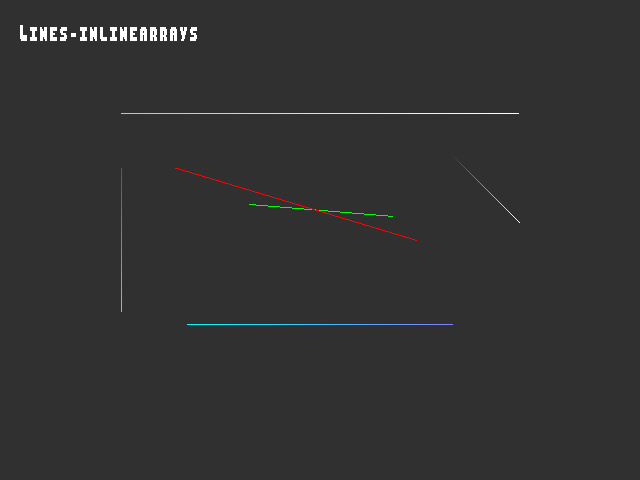

Lines-inlinearrays

Difference

0.012685397639870644

Description

Draws vertices as lines using NV097_INLINE_ARRAY

Diff result for 3D_primitive::Lines-inlinearrays

Source

Golden

Lines-inlinearrays-ls

Difference

0.025721825659275055

Description

Draws vertices as lines using NV097_INLINE_ARRAY with line smoothing enabled.

Diff result for 3D_primitive::Lines-inlinearrays-ls

Source

Golden

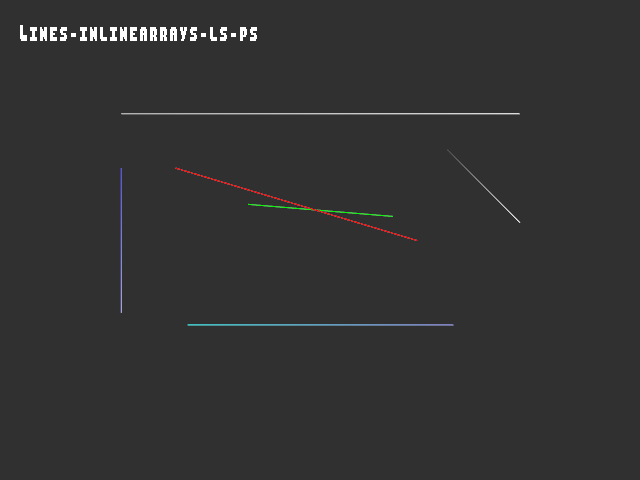

Lines-inlinearrays-ls-ps

Difference

0.015652166679501534

Description

Draws vertices as lines using NV097_INLINE_ARRAY with line and polygon smoothing enabled.

Diff result for 3D_primitive::Lines-inlinearrays-ls-ps

Source

Golden

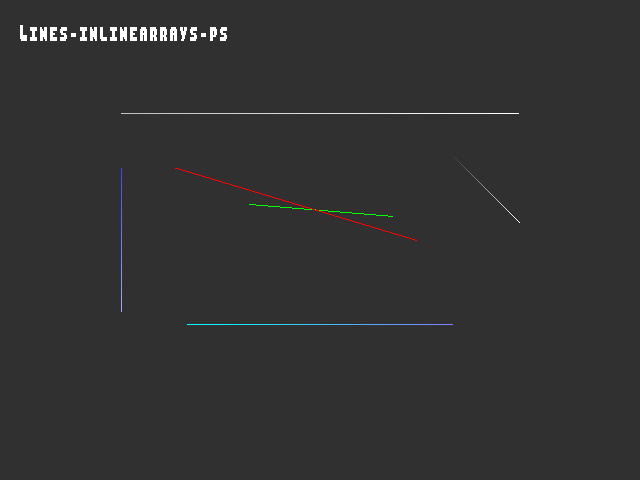

Lines-inlinearrays-ps

Difference

0.051884640008211136

Description

Draws vertices as lines using NV097_INLINE_ARRAY with polygon smoothing enabled.

Diff result for 3D_primitive::Lines-inlinearrays-ps

Source

Golden

Lines-inlinebuf

Difference

0.01268540509045124

Description

Draws vertices as lines using NV097_SET_VERTEX3F

Diff result for 3D_primitive::Lines-inlinebuf

Source

Golden

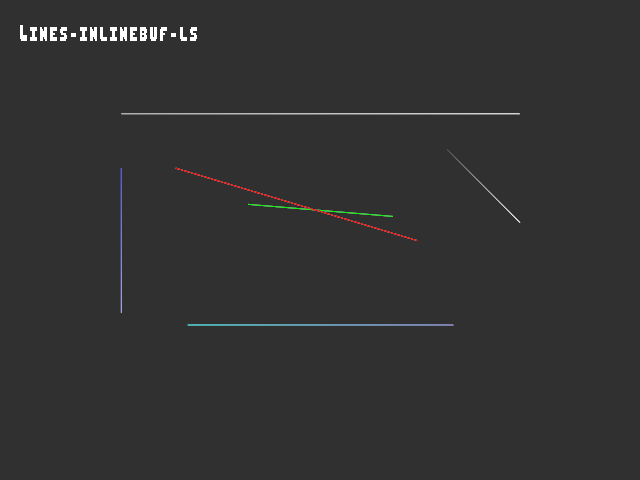

Lines-inlinebuf-ls

Difference

0.018470102921128273

Description

Draws vertices as lines using NV097_SET_VERTEX3F with line smoothing enabled.

Diff result for 3D_primitive::Lines-inlinebuf-ls

Source

Golden

Lines-inlinebuf-ls-ps

Difference

0.025753047317266464

Description

Draws vertices as lines using NV097_SET_VERTEX3F with line and polygon smoothing enabled.

Diff result for 3D_primitive::Lines-inlinebuf-ls-ps

Source

Golden

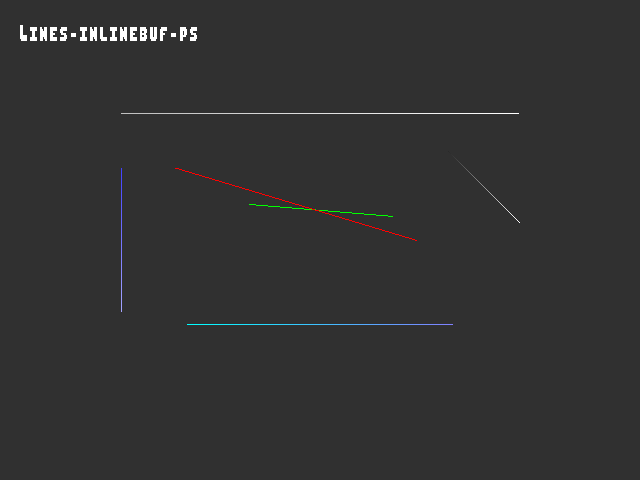

Lines-inlinebuf-ps

Difference

0.05188459903001785

Description

Draws vertices as lines using NV097_SET_VERTEX3F with polygon smoothing enabled.

Diff result for 3D_primitive::Lines-inlinebuf-ps

Source

Golden

Lines-inlineelements

Difference

0.01268540509045124

Description

Draws vertices as lines using NV097_ARRAY_ELEMENT16

Diff result for 3D_primitive::Lines-inlineelements

Source

Golden

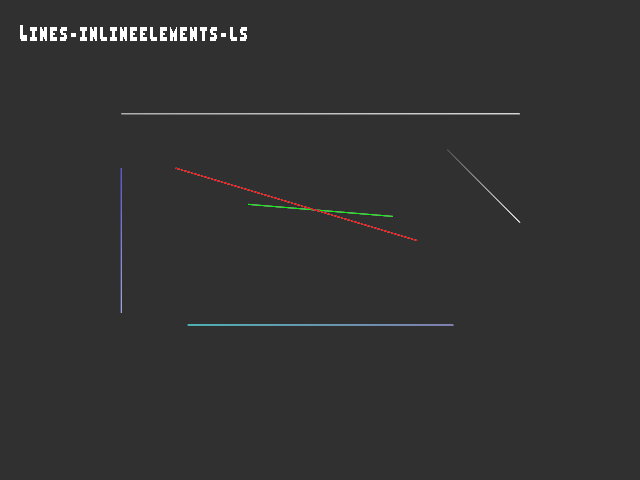

Lines-inlineelements-ls

Difference

0.020104598253965378

Description

Draws vertices as lines using NV097_ARRAY_ELEMENT16 with line smoothing enabled.

Diff result for 3D_primitive::Lines-inlineelements-ls

Source

Golden

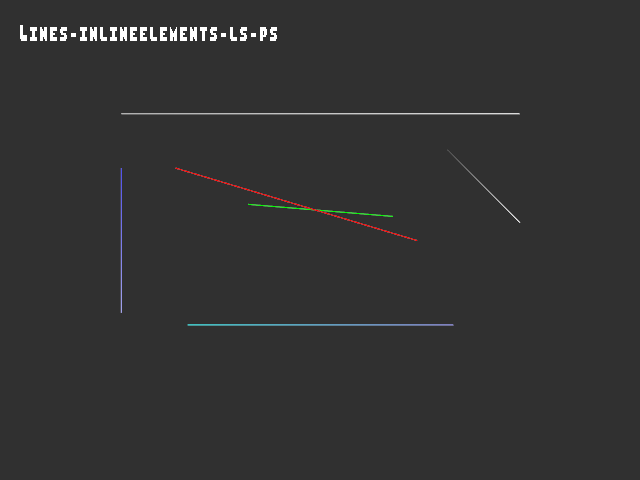

Lines-inlineelements-ls-ps

Difference

0.02575308084487915

Description

Draws vertices as lines using NV097_ARRAY_ELEMENT16 with line and polygon smoothing enabled.

Diff result for 3D_primitive::Lines-inlineelements-ls-ps

Source

Golden

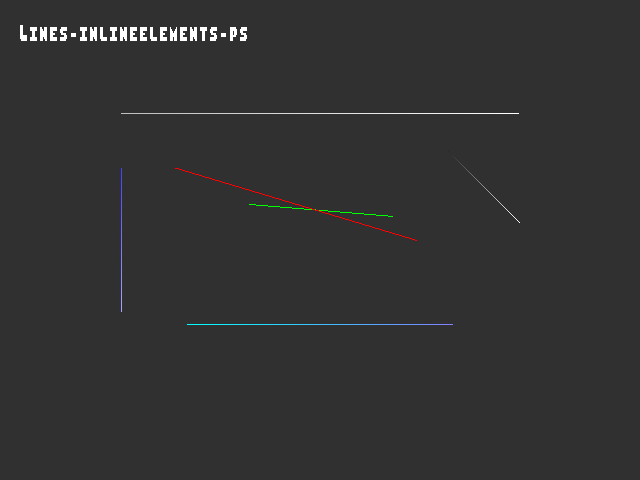

Lines-inlineelements-ps

Difference

0.05188458412885666

Description

Draws vertices as lines using NV097_ARRAY_ELEMENT16 with polygon smoothing enabled.

Diff result for 3D_primitive::Lines-inlineelements-ps

Source

Golden

Lines-ls

Difference

0.01908331923186779

Description

Draws vertices as lines using NV097_DRAW_ARRAYS with line smoothing enabled.

Source

Golden

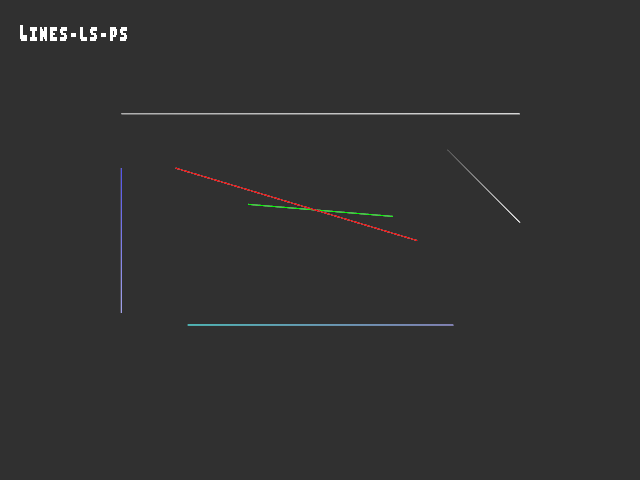

Lines-ls-ps

Difference

0.02010643295943737

Description

Draws vertices as lines using NV097_DRAW_ARRAYS with line and polygon smoothing enabled.

Diff result for 3D_primitive::Lines-ls-ps

Source

Golden

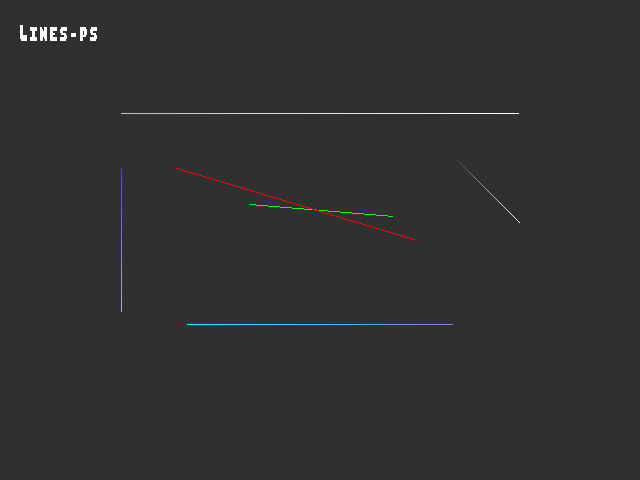

Lines-ps

Difference

0.05188703536987305

Description

Draws vertices as lines using NV097_DRAW_ARRAYS with polygon smoothing enabled.

Source

Golden

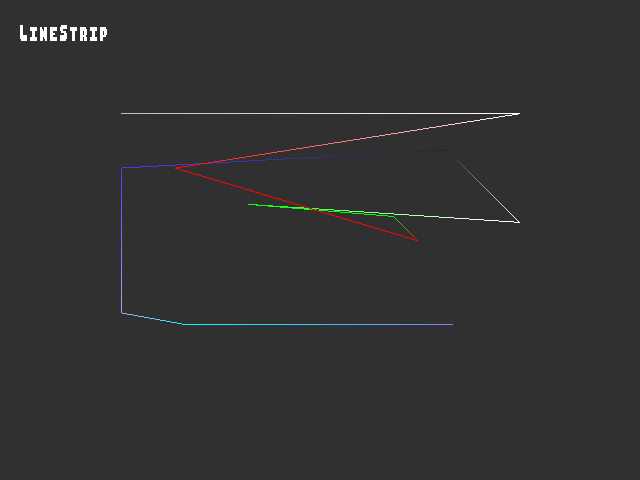

LineStrip

Difference

0.013068591244518757

Description

Draws vertices as a line strip using NV097_DRAW_ARRAYS

Source

Golden

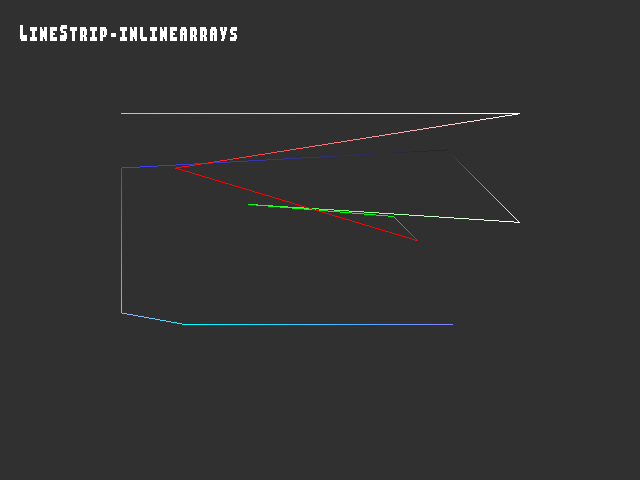

LineStrip-inlinearrays

Difference

0.01306853536516428

Description

Draws vertices as a line strip using NV097_INLINE_ARRAY

Diff result for 3D_primitive::LineStrip-inlinearrays

Source

Golden

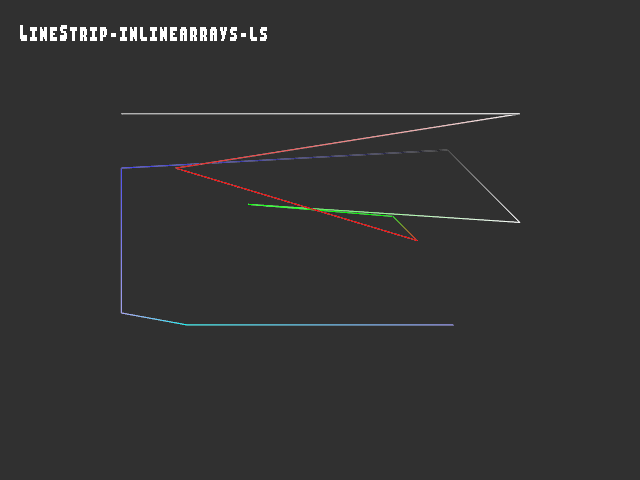

LineStrip-inlinearrays-ls

Difference

0.018589386716485023

Description

Draws vertices as a line strip using NV097_INLINE_ARRAY with line smoothing enabled.

Diff result for 3D_primitive::LineStrip-inlinearrays-ls

Source

Golden

LineStrip-inlinearrays-ls-ps

Difference

0.011809300631284714

Description

Draws vertices as a line strip using NV097_INLINE_ARRAY with line and polygon smoothing enabled.

Diff result for 3D_primitive::LineStrip-inlinearrays-ls-ps

Source

Golden

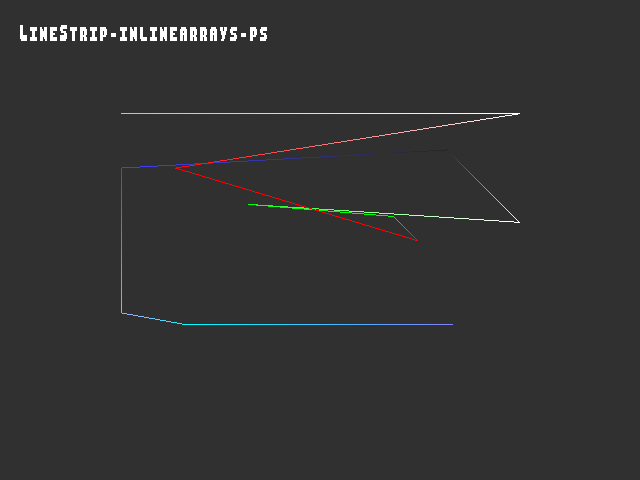

LineStrip-inlinearrays-ps

Difference

0.03798481822013855

Description

Draws vertices as a line strip using NV097_INLINE_ARRAY with polygon smoothing enabled.

Diff result for 3D_primitive::LineStrip-inlinearrays-ps

Source

Golden

LineStrip-inlinebuf

Difference

0.0130685456097126

Description

Draws vertices as a line strip using NV097_SET_VERTEX3F

Diff result for 3D_primitive::LineStrip-inlinebuf

Source

Golden

LineStrip-inlinebuf-ls

Difference

0.012849466875195503

Description

Draws vertices as a line strip using NV097_SET_VERTEX3F with line smoothing enabled.

Diff result for 3D_primitive::LineStrip-inlinebuf-ls

Source

Golden

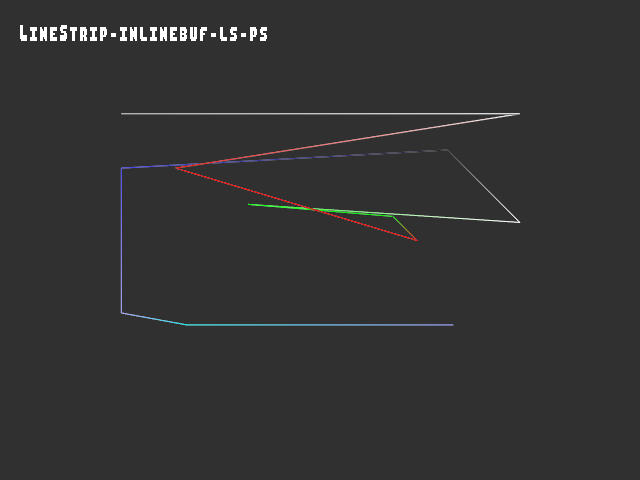

LineStrip-inlinebuf-ls-ps

Difference

0.01847533881664276

Description

Draws vertices as a line strip using NV097_SET_VERTEX3F with line and polygon smoothing enabled.

Diff result for 3D_primitive::LineStrip-inlinebuf-ls-ps

Source

Golden

LineStrip-inlinebuf-ps

Difference

0.03798484057188034

Description

Draws vertices as a line strip using NV097_SET_VERTEX3F with polygon smoothing enabled.

Diff result for 3D_primitive::LineStrip-inlinebuf-ps

Source

Golden

LineStrip-inlineelements

Difference

0.013068506494164467

Description

Draws vertices as a line strip using NV097_ARRAY_ELEMENT16

Diff result for 3D_primitive::LineStrip-inlineelements

Source

Golden

LineStrip-inlineelements-ls

Difference

0.013910481706261635

Description

Draws vertices as a line strip using NV097_ARRAY_ELEMENT16 with line smoothing enabled.

Diff result for 3D_primitive::LineStrip-inlineelements-ls

Source

Golden

LineStrip-inlineelements-ls-ps

Difference

0.01847473531961441

Description

Draws vertices as a line strip using NV097_ARRAY_ELEMENT16 with line and polygon smoothing enabled.

Diff result for 3D_primitive::LineStrip-inlineelements-ls-ps

Source

Golden

LineStrip-inlineelements-ps

Difference

0.037984855473041534

Description

Draws vertices as a line strip using NV097_ARRAY_ELEMENT16 with polygon smoothing enabled.

Diff result for 3D_primitive::LineStrip-inlineelements-ps

Source

Golden

LineStrip-ls

Difference

0.013118489645421505

Description

Draws vertices as a line strip using NV097_DRAW_ARRAYS with line smoothing enabled.

Diff result for 3D_primitive::LineStrip-ls

Source

Golden

LineStrip-ls-ps

Difference

0.013911755755543709

Description

Draws vertices as a line strip using NV097_DRAW_ARRAYS with line and polygon smoothing enabled.

Diff result for 3D_primitive::LineStrip-ls-ps

Source

Golden

LineStrip-ps

Difference

0.037985172122716904

Description

Draws vertices as a line strip using NV097_DRAW_ARRAYS with polygon smoothing enabled.

Diff result for 3D_primitive::LineStrip-ps

Source

Golden

Points

Difference

0.001126265386119485

Description

Draws vertices as points using NV097_DRAW_ARRAYS

Source

Golden

Points-inlinearrays

Difference

0.001126265386119485

Description

Draws vertices as points using NV097_INLINE_ARRAY

Diff result for 3D_primitive::Points-inlinearrays

Source

Golden

Points-inlinearrays-ls

Difference

0.045162416994571686

Description

Draws vertices as points using NV097_INLINE_ARRAY with line smoothing enabled.

Diff result for 3D_primitive::Points-inlinearrays-ls

Source

Golden

Points-inlinearrays-ls-ps

Difference

0.04516240581870079

Description

Draws vertices as points using NV097_INLINE_ARRAY with line and polygon smoothing enabled.

Diff result for 3D_primitive::Points-inlinearrays-ls-ps

Source

Golden

Points-inlinearrays-ps

Difference

0.045161545276641846

Description

Draws vertices as points using NV097_INLINE_ARRAY with polygon smoothing enabled.

Diff result for 3D_primitive::Points-inlinearrays-ps

Source

Golden

Points-inlinebuf

Difference

0.001126265386119485

Description

Draws vertices as points using NV097_SET_VERTEX3F

Diff result for 3D_primitive::Points-inlinebuf

Source

Golden

Points-inlinebuf-ls

Difference

0.0451667457818985

Description

Draws vertices as points using NV097_SET_VERTEX3F with line smoothing enabled.

Diff result for 3D_primitive::Points-inlinebuf-ls

Source

Golden

Points-inlinebuf-ls-ps

Difference

0.045167941600084305

Description

Draws vertices as points using NV097_SET_VERTEX3F with line and polygon smoothing enabled.

Diff result for 3D_primitive::Points-inlinebuf-ls-ps

Source

Golden

Points-inlinebuf-ps

Difference

0.045170869678258896

Description

Draws vertices as points using NV097_SET_VERTEX3F with polygon smoothing enabled.

Diff result for 3D_primitive::Points-inlinebuf-ps

Source

Golden

Points-inlineelements

Difference

0.001126265386119485

Description

Draws vertices as points using NV097_ARRAY_ELEMENT16

Diff result for 3D_primitive::Points-inlineelements

Source

Golden

Points-inlineelements-ls

Difference

0.04517208784818649

Description

Draws vertices as points using NV097_ARRAY_ELEMENT16 with line smoothing enabled.

Diff result for 3D_primitive::Points-inlineelements-ls

Source

Golden

Points-inlineelements-ls-ps

Difference

0.04517209157347679

Description

Draws vertices as points using NV097_ARRAY_ELEMENT16 with line and polygon smoothing enabled.

Diff result for 3D_primitive::Points-inlineelements-ls-ps

Source

Golden

Points-inlineelements-ps

Difference

0.0451720654964447

Description

Draws vertices as points using NV097_ARRAY_ELEMENT16 with polygon smoothing enabled.

Diff result for 3D_primitive::Points-inlineelements-ps

Source

Golden

Points-ls

Difference

0.04547261819243431

Description

Draws vertices as points using NV097_DRAW_ARRAYS with line smoothing enabled.

Source

Golden

Points-ls-ps

Difference

0.04522433876991272

Description

Draws vertices as points using NV097_DRAW_ARRAYS with line and polygon smoothing enabled.

Diff result for 3D_primitive::Points-ls-ps

Source

Golden

Points-ps

Difference

0.04546895995736122

Description

Draws vertices as points using NV097_DRAW_ARRAYS with polygon smoothing enabled.

Source

Golden

Polygon

Difference

0.0003643651434686035

Description

Draws vertices as a polygon using NV097_DRAW_ARRAYS

Source

Golden

Polygon-inlinearrays

Difference

0.00036006548907607794

Description

Draws vertices as a polygon using NV097_INLINE_ARRAY

Diff result for 3D_primitive::Polygon-inlinearrays

Source

Golden

Polygon-inlinearrays-ls

Difference

0.0009068569634109735

Description

Draws vertices as a polygon using NV097_INLINE_ARRAY with line smoothing enabled.

Diff result for 3D_primitive::Polygon-inlinearrays-ls

Source

Golden

Polygon-inlinearrays-ls-ps

Difference

0.007014470640569925

Description

Draws vertices as a polygon using NV097_INLINE_ARRAY with line and polygon smoothing enabled.

Diff result for 3D_primitive::Polygon-inlinearrays-ls-ps

Source

Golden

Polygon-inlinearrays-ps

Difference

0.007019705139100552

Description

Draws vertices as a polygon using NV097_INLINE_ARRAY with polygon smoothing enabled.

Diff result for 3D_primitive::Polygon-inlinearrays-ps

Source

Golden

Polygon-inlinebuf

Difference

0.00036233715945854783

Description

Draws vertices as a polygon using NV097_SET_VERTEX3F

Diff result for 3D_primitive::Polygon-inlinebuf

Source

Golden

Polygon-inlinebuf-ls

Difference

0.000909569498617202

Description

Draws vertices as a polygon using NV097_SET_VERTEX3F with line smoothing enabled.

Diff result for 3D_primitive::Polygon-inlinebuf-ls

Source

Golden

Polygon-inlinebuf-ls-ps

Difference

0.007448418997228146

Description

Draws vertices as a polygon using NV097_SET_VERTEX3F with line and polygon smoothing enabled.

Diff result for 3D_primitive::Polygon-inlinebuf-ls-ps

Source

Golden

Polygon-inlinebuf-ps

Difference

0.00703083910048008

Description

Draws vertices as a polygon using NV097_SET_VERTEX3F with polygon smoothing enabled.

Diff result for 3D_primitive::Polygon-inlinebuf-ps

Source

Golden

Polygon-inlineelements

Difference

0.00035816660965792835

Description

Draws vertices as a polygon using NV097_ARRAY_ELEMENT16

Diff result for 3D_primitive::Polygon-inlineelements

Source

Golden

Polygon-inlineelements-ls

Difference

0.0009047609055414796

Description

Draws vertices as a polygon using NV097_ARRAY_ELEMENT16 with line smoothing enabled.

Diff result for 3D_primitive::Polygon-inlineelements-ls

Source

Golden

Polygon-inlineelements-ls-ps

Difference

0.007439904846251011

Description

Draws vertices as a polygon using NV097_ARRAY_ELEMENT16 with line and polygon smoothing enabled.

Diff result for 3D_primitive::Polygon-inlineelements-ls-ps

Source

Golden

Polygon-inlineelements-ps

Difference

0.007016520481556654

Description

Draws vertices as a polygon using NV097_ARRAY_ELEMENT16 with polygon smoothing enabled.

Diff result for 3D_primitive::Polygon-inlineelements-ps

Source

Golden

Polygon-ls

Difference

0.0009115979773923755

Description

Draws vertices as a polygon using NV097_DRAW_ARRAYS with line smoothing enabled.

Diff result for 3D_primitive::Polygon-ls

Source

Golden

Polygon-ls-ps

Difference

0.007618539966642857

Description

Draws vertices as a polygon using NV097_DRAW_ARRAYS with line and polygon smoothing enabled.

Diff result for 3D_primitive::Polygon-ls-ps

Source

Golden

Polygon-ps

Difference

0.007463517133146524

Description

Draws vertices as a polygon using NV097_DRAW_ARRAYS with polygon smoothing enabled.

Diff result for 3D_primitive::Polygon-ps

Source

Golden

Quads

Difference

0.0005827287677675486

Description

Draws vertices as quads using NV097_DRAW_ARRAYS

Source

Golden

Quads-inlinearrays

Difference

0.0005638850852847099

Description

Draws vertices as quads using NV097_INLINE_ARRAY

Diff result for 3D_primitive::Quads-inlinearrays

Source

Golden

Quads-inlinearrays-ls

Difference

0.0024363468401134014

Description

Draws vertices as quads using NV097_INLINE_ARRAY with line smoothing enabled.

Diff result for 3D_primitive::Quads-inlinearrays-ls

Source

Golden

Quads-inlinearrays-ls-ps

Difference

0.005182428751140833

Description

Draws vertices as quads using NV097_INLINE_ARRAY with line and polygon smoothing enabled.

Diff result for 3D_primitive::Quads-inlinearrays-ls-ps

Source

Golden

Quads-inlinearrays-ps

Difference

0.005184703040868044

Description

Draws vertices as quads using NV097_INLINE_ARRAY with polygon smoothing enabled.

Diff result for 3D_primitive::Quads-inlinearrays-ps

Source

Golden

Quads-inlinebuf

Difference

0.0005765280802734196

Description

Draws vertices as quads using NV097_SET_VERTEX3F

Diff result for 3D_primitive::Quads-inlinebuf

Source

Golden

Quads-inlinebuf-ls

Difference

0.0024546755012124777

Description

Draws vertices as quads using NV097_SET_VERTEX3F with line smoothing enabled.

Diff result for 3D_primitive::Quads-inlinebuf-ls

Source

Golden

Quads-inlinebuf-ls-ps

Difference

0.007631730288267136

Description

Draws vertices as quads using NV097_SET_VERTEX3F with line and polygon smoothing enabled.

Diff result for 3D_primitive::Quads-inlinebuf-ls-ps

Source

Golden

Quads-inlinebuf-ps

Difference

0.005189500283449888

Description

Draws vertices as quads using NV097_SET_VERTEX3F with polygon smoothing enabled.

Diff result for 3D_primitive::Quads-inlinebuf-ps

Source

Golden

Quads-inlineelements

Difference

0.0005574484821408987

Description

Draws vertices as quads using NV097_ARRAY_ELEMENT16

Diff result for 3D_primitive::Quads-inlineelements

Source

Golden

Quads-inlineelements-ls

Difference

0.002431280445307493

Description

Draws vertices as quads using NV097_ARRAY_ELEMENT16 with line smoothing enabled.

Diff result for 3D_primitive::Quads-inlineelements-ls

Source

Golden

Quads-inlineelements-ls-ps

Difference

0.00762429554015398

Description

Draws vertices as quads using NV097_ARRAY_ELEMENT16 with line and polygon smoothing enabled.

Diff result for 3D_primitive::Quads-inlineelements-ls-ps

Source

Golden

Quads-inlineelements-ps

Difference

0.005183382425457239

Description

Draws vertices as quads using NV097_ARRAY_ELEMENT16 with polygon smoothing enabled.

Diff result for 3D_primitive::Quads-inlineelements-ps

Source

Golden

Quads-ls

Difference

0.002495542634278536

Description

Draws vertices as quads using NV097_DRAW_ARRAYS with line smoothing enabled.

Source

Golden

Quads-ls-ps

Difference

0.007997753098607063

Description

Draws vertices as quads using NV097_DRAW_ARRAYS with line and polygon smoothing enabled.

Diff result for 3D_primitive::Quads-ls-ps

Source

Golden

Quads-ps

Difference

0.007667803205549717

Description

Draws vertices as quads using NV097_DRAW_ARRAYS with polygon smoothing enabled.

Source

Golden

QuadStrip

Difference

0.00023002029047347605

Description

Draws vertices as a strip of quads using NV097_DRAW_ARRAYS

Source

Golden

QuadStrip-inlinearrays

Difference

0.0002300651540281251

Description

Draws vertices as a strip of quads using NV097_INLINE_ARRAY

Diff result for 3D_primitive::QuadStrip-inlinearrays

Source

Golden

QuadStrip-inlinearrays-ls

Difference

0.005355555564165115

Description

Draws vertices as a strip of quads using NV097_INLINE_ARRAY with line smoothing enabled.

Diff result for 3D_primitive::QuadStrip-inlinearrays-ls

Source

Golden

QuadStrip-inlinearrays-ls-ps

Difference

0.013908348977565765

Description

Draws vertices as a strip of quads using NV097_INLINE_ARRAY with line and polygon smoothing enabled.

Diff result for 3D_primitive::QuadStrip-inlinearrays-ls-ps

Source

Golden

QuadStrip-inlinearrays-ps

Difference

0.013908972963690758

Description

Draws vertices as a strip of quads using NV097_INLINE_ARRAY with polygon smoothing enabled.

Diff result for 3D_primitive::QuadStrip-inlinearrays-ps

Source

Golden

QuadStrip-inlinebuf

Difference

0.00023005327966529876

Description

Draws vertices as a strip of quads using NV097_SET_VERTEX3F

Diff result for 3D_primitive::QuadStrip-inlinebuf

Source

Golden

QuadStrip-inlinebuf-ls

Difference

0.005358204711228609

Description

Draws vertices as a strip of quads using NV097_SET_VERTEX3F with line smoothing enabled.

Diff result for 3D_primitive::QuadStrip-inlinebuf-ls

Source

Golden

QuadStrip-inlinebuf-ls-ps

Difference

0.017544981092214584

Description

Draws vertices as a strip of quads using NV097_SET_VERTEX3F with line and polygon smoothing enabled.

Diff result for 3D_primitive::QuadStrip-inlinebuf-ls-ps

Source

Golden

QuadStrip-inlinebuf-ps

Difference

0.013948434963822365

Description

Draws vertices as a strip of quads using NV097_SET_VERTEX3F with polygon smoothing enabled.

Diff result for 3D_primitive::QuadStrip-inlinebuf-ps

Source

Golden

QuadStrip-inlineelements

Difference

0.0002300200139870867

Description

Draws vertices as a strip of quads using NV097_ARRAY_ELEMENT16

Diff result for 3D_primitive::QuadStrip-inlineelements

Source

Golden

QuadStrip-inlineelements-ls

Difference

0.005354400724172592

Description

Draws vertices as a strip of quads using NV097_ARRAY_ELEMENT16 with line smoothing enabled.

Diff result for 3D_primitive::QuadStrip-inlineelements-ls

Source

Golden

QuadStrip-inlineelements-ls-ps

Difference

0.017523303627967834

Description

Draws vertices as a strip of quads using NV097_ARRAY_ELEMENT16 with line and polygon smoothing enabled.

Diff result for 3D_primitive::QuadStrip-inlineelements-ls-ps

Source

Golden

QuadStrip-inlineelements-ps

Difference

0.013919253833591938

Description

Draws vertices as a strip of quads using NV097_ARRAY_ELEMENT16 with polygon smoothing enabled.

Diff result for 3D_primitive::QuadStrip-inlineelements-ps

Source

Golden

QuadStrip-ls

Difference

0.005379796493798494

Description

Draws vertices as a strip of quads using NV097_DRAW_ARRAYS with line smoothing enabled.

Diff result for 3D_primitive::QuadStrip-ls

Source

Golden

QuadStrip-ls-ps

Difference

0.01828503981232643

Description

Draws vertices as a strip of quads using NV097_DRAW_ARRAYS with line and polygon smoothing enabled.

Diff result for 3D_primitive::QuadStrip-ls-ps

Source

Golden

QuadStrip-ps

Difference

0.017540380358695984

Description

Draws vertices as a strip of quads using NV097_DRAW_ARRAYS with polygon smoothing enabled.

Diff result for 3D_primitive::QuadStrip-ps

Source

Golden

Triangles

Difference

0.003185574198141694

Description

Draws vertices as triangles using NV097_DRAW_ARRAYS

Source

Golden

Triangles-inlinearrays

Difference

0.003183966502547264

Description

Draws vertices as triangles using NV097_INLINE_ARRAY

Diff result for 3D_primitive::Triangles-inlinearrays

Source

Golden

Triangles-inlinearrays-ls

Difference

0.0023001646623015404

Description

Draws vertices as triangles using NV097_INLINE_ARRAY with line smoothing enabled.

Diff result for 3D_primitive::Triangles-inlinearrays-ls

Source

Golden

Triangles-inlinearrays-ls-ps

Difference

0.0034852568060159683

Description

Draws vertices as triangles using NV097_INLINE_ARRAY with line and polygon smoothing enabled.

Diff result for 3D_primitive::Triangles-inlinearrays-ls-ps

Source

Golden

Triangles-inlinearrays-ps

Difference

0.0034870461095124483

Description

Draws vertices as triangles using NV097_INLINE_ARRAY with polygon smoothing enabled.

Diff result for 3D_primitive::Triangles-inlinearrays-ps

Source

Golden

Triangles-inlinebuf

Difference

0.0031850761733949184

Description

Draws vertices as triangles using NV097_SET_VERTEX3F

Diff result for 3D_primitive::Triangles-inlinebuf

Source

Golden

Triangles-inlinebuf-ls

Difference

0.0023052364122122526

Description

Draws vertices as triangles using NV097_SET_VERTEX3F with line smoothing enabled.

Diff result for 3D_primitive::Triangles-inlinebuf-ls

Source

Golden

Triangles-inlinebuf-ls-ps

Difference

0.004200015217065811

Description

Draws vertices as triangles using NV097_SET_VERTEX3F with line and polygon smoothing enabled.

Diff result for 3D_primitive::Triangles-inlinebuf-ls-ps

Source

Golden

Triangles-inlinebuf-ps

Difference

0.0034893867559731007

Description

Draws vertices as triangles using NV097_SET_VERTEX3F with polygon smoothing enabled.

Diff result for 3D_primitive::Triangles-inlinebuf-ps

Source

Golden

Triangles-inlineelements

Difference

0.00318031944334507

Description

Draws vertices as triangles using NV097_ARRAY_ELEMENT16

Diff result for 3D_primitive::Triangles-inlineelements

Source

Golden

Triangles-inlineelements-ls

Difference

0.0022976049222052097

Description

Draws vertices as triangles using NV097_ARRAY_ELEMENT16 with line smoothing enabled.

Diff result for 3D_primitive::Triangles-inlineelements-ls

Source

Golden

Triangles-inlineelements-ls-ps

Difference

0.004195555578917265

Description

Draws vertices as triangles using NV097_ARRAY_ELEMENT16 with line and polygon smoothing enabled.

Diff result for 3D_primitive::Triangles-inlineelements-ls-ps

Source

Golden

Triangles-inlineelements-ps

Difference

0.0034856705460697412

Description

Draws vertices as triangles using NV097_ARRAY_ELEMENT16 with polygon smoothing enabled.

Diff result for 3D_primitive::Triangles-inlineelements-ps

Source

Golden

Triangles-ls

Difference

0.0023070198949426413

Description

Draws vertices as triangles using NV097_DRAW_ARRAYS with line smoothing enabled.

Diff result for 3D_primitive::Triangles-ls

Source

Golden

Triangles-ls-ps

Difference

0.004367698449641466

Description

Draws vertices as triangles using NV097_DRAW_ARRAYS with line and polygon smoothing enabled.

Diff result for 3D_primitive::Triangles-ls-ps

Source

Golden

Triangles-ps

Difference

0.004207741469144821

Description

Draws vertices as triangles using NV097_DRAW_ARRAYS with polygon smoothing enabled.

Diff result for 3D_primitive::Triangles-ps

Source

Golden

TriFan

Difference

0.0008457092335447669

Description

Draws vertices as a triangle fan using NV097_DRAW_ARRAYS

Source

Golden

TriFan-inlinearrays

Difference

0.0008457308867946267

Description

Draws vertices as a triangle fan using NV097_INLINE_ARRAY

Diff result for 3D_primitive::TriFan-inlinearrays

Source

Golden

TriFan-inlinearrays-ls

Difference

0.0017877230420708656

Description

Draws vertices as a triangle fan using NV097_INLINE_ARRAY with line smoothing enabled.

Diff result for 3D_primitive::TriFan-inlinearrays-ls

Source

Golden

TriFan-inlinearrays-ls-ps

Difference

0.007557565346360207

Description

Draws vertices as a triangle fan using NV097_INLINE_ARRAY with line and polygon smoothing enabled.

Diff result for 3D_primitive::TriFan-inlinearrays-ls-ps

Source

Golden

TriFan-inlinearrays-ps

Difference

0.007561529986560345

Description

Draws vertices as a triangle fan using NV097_INLINE_ARRAY with polygon smoothing enabled.

Diff result for 3D_primitive::TriFan-inlinearrays-ps

Source

Golden

TriFan-inlinebuf

Difference

0.0008458794327452779

Description

Draws vertices as a triangle fan using NV097_SET_VERTEX3F

Diff result for 3D_primitive::TriFan-inlinebuf

Source

Golden

TriFan-inlinebuf-ls

Difference

0.001786929671652615

Description

Draws vertices as a triangle fan using NV097_SET_VERTEX3F with line smoothing enabled.

Diff result for 3D_primitive::TriFan-inlinebuf-ls

Source

Golden

TriFan-inlinebuf-ls-ps

Difference

0.009579293429851532

Description

Draws vertices as a triangle fan using NV097_SET_VERTEX3F with line and polygon smoothing enabled.

Diff result for 3D_primitive::TriFan-inlinebuf-ls-ps

Source

Golden

TriFan-inlinebuf-ps

Difference

0.007561058737337589

Description

Draws vertices as a triangle fan using NV097_SET_VERTEX3F with polygon smoothing enabled.

Diff result for 3D_primitive::TriFan-inlinebuf-ps

Source

Golden

TriFan-inlineelements

Difference

0.000845664762891829

Description

Draws vertices as a triangle fan using NV097_ARRAY_ELEMENT16

Diff result for 3D_primitive::TriFan-inlineelements

Source

Golden

TriFan-inlineelements-ls

Difference

0.0017853842582553625

Description

Draws vertices as a triangle fan using NV097_ARRAY_ELEMENT16 with line smoothing enabled.

Diff result for 3D_primitive::TriFan-inlineelements-ls

Source

Golden

TriFan-inlineelements-ls-ps

Difference

0.009565395303070545

Description

Draws vertices as a triangle fan using NV097_ARRAY_ELEMENT16 with line and polygon smoothing enabled.

Diff result for 3D_primitive::TriFan-inlineelements-ls-ps

Source

Golden

TriFan-inlineelements-ps

Difference

0.0075559914112091064

Description

Draws vertices as a triangle fan using NV097_ARRAY_ELEMENT16 with polygon smoothing enabled.

Diff result for 3D_primitive::TriFan-inlineelements-ps

Source

Golden

TriFan-ls

Difference

0.001796054420992732

Description

Draws vertices as a triangle fan using NV097_DRAW_ARRAYS with line smoothing enabled.

Source

Golden

TriFan-ls-ps

Difference

0.01004011370241642

Description

Draws vertices as a triangle fan using NV097_DRAW_ARRAYS with line and polygon smoothing enabled.

Diff result for 3D_primitive::TriFan-ls-ps

Source

Golden

TriFan-ps

Difference

0.009598926641047001

Description

Draws vertices as a triangle fan using NV097_DRAW_ARRAYS with polygon smoothing enabled.

Source

Golden

TriStrip

Difference

0.0007219102699309587

Description

Draws vertices as a strip of triangles using NV097_DRAW_ARRAYS

Source

Golden

TriStrip-inlinearrays

Difference

0.0007141922833397985

Description

Draws vertices as a strip of triangles using NV097_INLINE_ARRAY

Diff result for 3D_primitive::TriStrip-inlinearrays

Source

Golden

TriStrip-inlinearrays-ls

Difference

0.0012135980650782585

Description

Draws vertices as a strip of triangles using NV097_INLINE_ARRAY with line smoothing enabled.

Diff result for 3D_primitive::TriStrip-inlinearrays-ls

Source

Golden

TriStrip-inlinearrays-ls-ps

Difference

0.0064380536787211895

Description

Draws vertices as a strip of triangles using NV097_INLINE_ARRAY with line and polygon smoothing enabled.

Diff result for 3D_primitive::TriStrip-inlinearrays-ls-ps

Source

Golden

TriStrip-inlinearrays-ps

Difference

0.006438146345317364

Description

Draws vertices as a strip of triangles using NV097_INLINE_ARRAY with polygon smoothing enabled.

Diff result for 3D_primitive::TriStrip-inlinearrays-ps

Source

Golden

TriStrip-inlinebuf

Difference

0.0007151909521780908

Description

Draws vertices as a strip of triangles using NV097_SET_VERTEX3F

Diff result for 3D_primitive::TriStrip-inlinebuf

Source

Golden

TriStrip-inlinebuf-ls

Difference

0.001214852323755622

Description

Draws vertices as a strip of triangles using NV097_SET_VERTEX3F with line smoothing enabled.

Diff result for 3D_primitive::TriStrip-inlinebuf-ls

Source

Golden

TriStrip-inlinebuf-ls-ps

Difference

0.0076616243459284306

Description

Draws vertices as a strip of triangles using NV097_SET_VERTEX3F with line and polygon smoothing enabled.

Diff result for 3D_primitive::TriStrip-inlinebuf-ls-ps

Source

Golden

TriStrip-inlinebuf-ps

Difference

0.006440178491175175

Description

Draws vertices as a strip of triangles using NV097_SET_VERTEX3F with polygon smoothing enabled.

Diff result for 3D_primitive::TriStrip-inlinebuf-ps

Source

Golden

TriStrip-inlineelements

Difference

0.0007148307049646974

Description

Draws vertices as a strip of triangles using NV097_ARRAY_ELEMENT16

Diff result for 3D_primitive::TriStrip-inlineelements

Source

Golden

TriStrip-inlineelements-ls

Difference

0.0012138721067458391

Description

Draws vertices as a strip of triangles using NV097_ARRAY_ELEMENT16 with line smoothing enabled.

Diff result for 3D_primitive::TriStrip-inlineelements-ls

Source

Golden

TriStrip-inlineelements-ls-ps

Difference

0.007661821320652962

Description

Draws vertices as a strip of triangles using NV097_ARRAY_ELEMENT16 with line and polygon smoothing enabled.

Diff result for 3D_primitive::TriStrip-inlineelements-ls-ps

Source

Golden

TriStrip-inlineelements-ps

Difference

0.006439691409468651

Description

Draws vertices as a strip of triangles using NV097_ARRAY_ELEMENT16 with polygon smoothing enabled.

Diff result for 3D_primitive::TriStrip-inlineelements-ps

Source

Golden

TriStrip-ls

Difference

0.0012211478315293789

Description

Draws vertices as a strip of triangles using NV097_DRAW_ARRAYS with line smoothing enabled.

Diff result for 3D_primitive::TriStrip-ls

Source

Golden

TriStrip-ls-ps

Difference

0.007899790070950985

Description

Draws vertices as a strip of triangles using NV097_DRAW_ARRAYS with line and polygon smoothing enabled.

Diff result for 3D_primitive::TriStrip-ls-ps

Source

Golden

TriStrip-ps

Difference

0.007668619975447655

Description

Draws vertices as a strip of triangles using NV097_DRAW_ARRAYS with polygon smoothing enabled.

Diff result for 3D_primitive::TriStrip-ps

Source

Golden

Antialiasing_tests

Description

Tests the effects of NV097_SET_SURFACE_FORMAT_ANTI_ALIASING in various scenarios.

Many of these tests were created to demonstrate specific bugs in xemu and are not of practical value in typical hardware use cases.

Suite class def

src/tests/antialiasing_tests.h

CPUWriteIgnoresSurfaceConfig

Difference

0.07946005463600159

Description

This test verifies that direct writes to VRAM bypass any surface configuration. It sets up a texture surface with antialiasing enabled, then writes directly to texture memory and renders the texture to the screen. It is expected that antialiasing has no effect.

Diff result for Antialiasing_tests::CPUWriteIgnoresSurfaceConfig

Source

Golden

FBSurfaceWithCenterCorner2

Difference

0.009012611582875252

Diff result for Antialiasing_tests::FBSurfaceWithCenterCorner2

Source

Golden

FramebufferNotModifiedBySurfaceState

Difference

inf

No source result

Golden - No source result

Golden image for Antialiasing_tests::FramebufferNotModifiedBySurfaceState

GPUAAWriteAfterCPUWrite

Difference

0.0006389541085809469

Diff result for Antialiasing_tests::GPUAAWriteAfterCPUWrite

Source

Golden

NonAACPURoundTrip

Difference

0.16115376353263855

Diff result for Antialiasing_tests::NonAACPURoundTrip

Source

Golden

Attrib_setter

Setters-alpha

Difference

1.614708708075341e-05

Diff result for Attrib_setter::Setters-alpha

Source

Golden

Setters-visible

Difference

4.0051938412943855e-05

Diff result for Attrib_setter::Setters-visible

Source

Golden

Blend_tests

Description

Tests the effects of NV097_SET_BLEND_EQUATION, NV097_SET_BLEND_FUNC_SFACTOR, and NV097_SET_BLEND_FUNC_DFACTOR on rendering unsigned textures.

All test names are of the form -- where:

sfactor/dfactor are one of: 0 - ZERO, 1 - ONE, srcRGB - SRC_COLOR, 1-srcRGB - ONE_MINUS_SRC_COLOR, srcA - SRC_ALPHA, 1-srcA - ONE_MINUS_SRC_ALPHA, dstA - DST_ALPHA, 1-dstA - ONE_MINUS_DST_ALPHA, dstRGB - DST_COLOR, 1-dstRGB - ONE_MINUS_DST_COLOR, srcAsat - SRC_ALPHA_SATURATE, cRGB - CONSTANT_COLOR, 1-cRGB - ONE_MINUS_CONSTANT_COLOR, cA - CONSTANT_ALPHA, 1-cA - ONE_MINUS_CONSTANT_ALPHA

equation is one of: ADD - NV097_SET_BLEND_EQUATION_V_FUNC_ADD, SUB - NV097_SET_BLEND_EQUATION_V_FUNC_SUBTRACT, REVSUB - NV097_SET_BLEND_EQUATION_V_FUNC_REVERSE_SUBTRACT, MIN - NV097_SET_BLEND_EQUATION_V_MIN, MAX - NV097_SET_BLEND_EQUATION_V_MAX, SADD - NV097_SET_BLEND_EQUATION_V_FUNC_ADD_SIGNED, SREVSUB - NV097_SET_BLEND_EQUATION_V_FUNC_REVERSE_SUBTRACT_SIGNED,

The left, center, and right renders are all composited against a 16 pixel checkerboard pattern alternating between a background color and fully opaque black.

On the left side of the screen, a column of squares is rendered with colors blended with the checkerboard and alpha always set to 0xDD.

In the center of the screen, a stack of concentric squares is rendered with colors that are not blended and alpha values blended with the checkerboard (the first 16x16 will be blended with the BG color, the next with full opaque black, etc...). Each square is composited with the previous square from outside to inside, so the outermost is only blended with the checkerboard, the next is blended with both the checkerboard and the result of the outermost blend, etc...

On the right side of the screen, a column of squares is rendered with both color and alpha values blended.

Suite class def

src/tests/blend_tests.h

SignedAdd

Difference

0.2631147801876068

Source

Golden

SignedRevSubtract

Difference

0.14807987213134766

Diff result for Blend_tests::SignedRevSubtract

Source

Golden

Color_key

Description

Tests NV097_SET_COLOR_KEY_COLOR (0x0AE0) and the NV097_SET_TEXTURE_CONTROL0_COLOR_KEY_MODE color key functions.

NV097_SET_TEXTURE_CONTROL0_COLOR_KEY_MODE is used to instruct the hardware what to do when a texel's value matches a color key. See ColorKeyMode for the supported modes.

NV097_SET_COLOR_KEY_COLOR is used to instruct the hardware which texels should have the color key mode applied.

Each test renders a series of quads, with each quad being divided into four subcomponents (NW = northwest/top left, etc...):

NW: Checkerboard alternating a color-keyed color and a light grey. NE: Checkerboard alternating a dark grey and an alpha-keyed color. SW: Checkerboard alternating the color-keyed color with alpha from the alpha key and the color keyed color with 0xFF alpha that matches none of the keys. SE: Checkerboard alternating a non-keyed color with alpha from the color key and a non-keyed color with alpha from the alpha key.

Suite class def

src/tests/color_key_tests.h

FixedTex_Alpha

Difference

0.11441047489643097

Description

With the fixed function pipeline, zero out just the alpha channel for all places where the colorkey matches the value of a texel. RGB channels are unaffected. This should omit all texels that match the color key.

Diff result for Color_key::FixedTex_Alpha

Source

Golden

FixedTex_AlphaColor

Difference

0.11445751786231995

Description

With the fixed function pipeline, kill the texel completely for wherever the color key matches the value of a texel. This completely masks the texel rather than simply zero-ing out values. See IgnAlphaCh_FixedTex_AlphaColor. This should omit all texels that match the color key.

Diff result for Color_key::FixedTex_AlphaColor

Source

Golden

FixedTex_Color

Difference

0.11446528136730194

Description

With the fixed function pipeline, zero out the color and alpha channels for all places where the color key matches the value of a texel. Note that the Alpha channel is also set to zero. This should omit all texels that match the color key.

Diff result for Color_key::FixedTex_Color

Source

Golden

FixedTex_Disabled

Difference

0.006342430133372545

Description

With the fixed function pipeline, make no changes to any texel whose value matches the color key. This should render all texels as fully opaque with their original colors.

Diff result for Color_key::FixedTex_Disabled

Source

Golden

IgnAlphaCh_FixedTex_Alpha

Difference

0.006154266186058521

Description

With the fixed function pipeline, set the color key mode to clear just the alpha channel for matching texels. When rendering, set the final combiner to use an alpha value of 0xFF for all texels, forcing pixels to be rendered opaque despite matching the color key. This should render all texels fully opaque with their original colors, since the texel alpha is ignored during texturing.

Diff result for Color_key::IgnAlphaCh_FixedTex_Alpha

Source

Golden

IgnAlphaCh_FixedTex_AlphaColor

Difference

0.11599530279636383

Description

With the fixed function pipeline, kill the texel completely for wherever the color key matches the value of a texel. This completely masks the texel rather than simply zero-ing out values. When rendering, set the final combiner to use an alpha value of 0xFF for all texels. This omits killed texels even though the combiner sets them to fully opaque during texturing.

Diff result for Color_key::IgnAlphaCh_FixedTex_AlphaColor

Source

Golden

IgnAlphaCh_FixedTex_Color

Difference

0.0986560806632042

Description

With the fixed function pipeline, zero out the color and alpha channels for all places where the color key matches the value of a texel. When rendering, set the final combiner to use an alpha value of 0xFF for all texels, forcing pixels to be rendered opaque despite matching the color key. This should render matching texels as fully black, since their RGB values were zeroed out and the zeroed alpha channel is ignored.

Diff result for Color_key::IgnAlphaCh_FixedTex_Color

Source

Golden

IgnAlphaCh_FixedTex_Disabled

Difference

0.006153085269033909

Description

With the fixed function pipeline, make no changes to any texel whose value matches the color key. When rendering, set the final combiner to use an alpha value of 0xFF for all texels. This should render all texels as fully opaque with their original colors.

Diff result for Color_key::IgnAlphaCh_FixedTex_Disabled

Source

Golden

IgnAlphaCh_ProgTex_Alpha

Difference

0.0005586283514276147

Description

With a programmable shader, set the color key mode to clear just the alpha channel for matching texels. When rendering, set the final combiner to use an alpha value of 0xFF for all texels, forcing pixels to be rendered opaque despite matching the color key. This should render all texels fully opaque with their original colors, since the texel alpha is ignored during texturing.

Diff result for Color_key::IgnAlphaCh_ProgTex_Alpha

Source

Golden

IgnAlphaCh_ProgTex_AlphaColor

Difference

0.11719400435686111

Description

With a programmable shader, kill the texel completely for wherever the color key matches the value of a texel. This completely masks the texel rather than simply zero-ing out values. When rendering, set the final combiner to use an alpha value of 0xFF for all texels. This omits killed texels even though the combiner sets them to fully opaque during texturing.

Diff result for Color_key::IgnAlphaCh_ProgTex_AlphaColor

Source

Golden

IgnAlphaCh_ProgTex_Color

Difference

0.09614556282758713

Description

With a programmable shader, zero out the color and alpha channels for all places where the color key matches the value of a texel. When rendering, set the final combiner to use an alpha value of 0xFF for all texels, forcing pixels to be rendered opaque despite matching the color key. This should render matching texels as fully black, since their RGB values were zeroed out and the zeroed alpha channel is ignored.

Diff result for Color_key::IgnAlphaCh_ProgTex_Color

Source

Golden

IgnAlphaCh_ProgTex_Disabled

Difference

0.0005586292245425284

Description

With a programmable shader, make no changes to any texel whose value matches the color key. When rendering, set the final combiner to use an alpha value of 0xFF for all texels. This should render all texels as fully opaque with their original colors.

Diff result for Color_key::IgnAlphaCh_ProgTex_Disabled

Source

Golden

ProgTex_Alpha

Difference

0.11597549915313721

Description

With a programmable shader, zero out just the alpha channel for all places where the colorkey matches the value of a texel. RGB channels are unaffected. This should omit all texels that match the color key.

Diff result for Color_key::ProgTex_Alpha

Source

Golden

ProgTex_AlphaColor

Difference

0.1160232424736023

Description

With a programmable shader, kill the texel completely for wherever the color key matches the value of a texel. This completely masks the texel rather than simply zero-ing out values. See IgnAlphaCh_FixedTex_AlphaColor. This should omit all texels that match the color key.

Diff result for Color_key::ProgTex_AlphaColor

Source

Golden

ProgTex_Color

Difference

0.11597840487957001

Description

With a programmable shader, zero out the color and alpha channels for all places where the color key matches the value of a texel. Note that the Alpha channel is also set to zero. This should omit all texels that match the color key.

Diff result for Color_key::ProgTex_Color

Source

Golden

ProgTex_Disabled

Difference

0.0005957636749371886

Description

With a programmable shader, make no changes to any texel whose value matches the color key. This should render all texels as fully opaque with their original colors.

Diff result for Color_key::ProgTex_Disabled

Source

Golden

UnsampledTex

Difference

0.04541626200079918

Description

Demonstrates that the color keys are independent of whether the associated texture stage is used in the final composition or not. With a programable shader, draw two quads with the color key mode set to kill matching texels. In both cases, the final color combiner only samples from texture 0. The left quad renders with the blue color key as key 0. The right quad enables the second texture stage, keeps key 0, and adds the magenta color key with an alpha value forced to 0xFF as key 1. The left image should have the blue color in the NW checkerboard killed. The right image should have the blue color in the NW checkerboard killed, but also the secondary blue color in the SW checkerboard killed. This is because the unsampled magenta texture's SW secondary color matches the magenta + 0xFF alpha enabled as a color key in the second operation.

Source

Golden

Color_mask_blend

Suite class def

src/tests/color_mask_blend_tests.h

C00010101_O32774_S772_D0

Difference

1.4361838111653924e-05

Diff result for Color_mask_blend::C00010101_O32774_S772_D0

Source

Golden

Color_zeta_overlap

Description

Tests behavior when the color buffer and z/stencil buffers overlap in RAM.

WARNING: These tests are non-deterministic on Xbox hardware. The primary intent of these tests is to verify that emulators do not crash.

Suite class def

src/tests/color_zeta_overlap_tests.h

AdjacentWithAA

Difference

inf

No source result

Golden - No source result

Golden image for Color_zeta_overlap::AdjacentWithAA

ColorIntoZeta_ZB

Difference

0.1102864220738411

Diff result for Color_zeta_overlap::ColorIntoZeta_ZB

Source

Golden

Swap

Difference

0.001021509408019483

Diff result for Color_zeta_overlap::Swap

Source

Golden

ZetaIntoColor

Difference

inf

No source result

Golden - No source result

Golden image for Color_zeta_overlap::ZetaIntoColor

ZetaIntoColor_ZB

Difference

inf

No source result

Golden - No source result

Golden image for Color_zeta_overlap::ZetaIntoColor_ZB

Combiner

Description

Tests behavior of NV097_SET_COMBINER_* and NV097_SET_SPECULAR_* final combiner operations.

Suite class def

src/tests/combiner_tests.h

Flags

Difference

0.0029976926743984222

Description

Tests behavior of specular_add_invert_r0, specular_add_invert_v1, and specular_clamp on final combiners.

Source

Golden

Independence

Difference

0.0016226478619500995

Description

Demonstrates that setting a register's value in a combiner stage does not mutate the value until after it is assigned as an output. The test performs several draws where R0 is initialized to some color then both mutated and copied into R1, demonstrating that the original value of R0 is copied into R1 before being replaced with the new value.

Source

Golden

Mux

Difference

0.0009975637076422572

Description

Tests behavior of the "MUX" combiner mode, in which R0.a is used to select between the AB and CD outputs.

Source

Golden

Edge_flag

Suite class def

src/tests/edge_flag_tests.h

Disabled

Difference

0.14116013050079346

Source

Golden

Enabled

Difference

0.037077005952596664

Source

Golden

Fog

Golden

Front_face

Description

Tests handling of NV097_SET_FRONT_FACE and NV097_SET_CULL_FACE, including degenerate winding values.

Suite class def

src/tests/front_face_tests.h

FrontFace_0_CF_B

Difference

4.708212145487778e-05

Description

Sets the winding to 0 with back faces culled. Prior to starting the test, NV097_SET_FRONT_FACE is set to CW. Only the right quad should be rendered.

Diff result for Front_face::FrontFace_0_CF_B

Source

Golden

FrontFace_0_CF_F

Difference

5.30024481122382e-05

Description

Sets the winding to 0 with front faces culled. Prior to starting the test, NV097_SET_FRONT_FACE is set to CW. Only the left quad should be rendered.

Diff result for Front_face::FrontFace_0_CF_F

Source

Golden

FrontFace_63_CF_B

Difference

4.708212145487778e-05

Description

Sets the winding to 0x63 with back faces culled. Prior to starting the test, NV097_SET_FRONT_FACE is set to CW. Only the right quad should be rendered.

Diff result for Front_face::FrontFace_63_CF_B

Source

Golden

FrontFace_63_CF_F

Difference

5.3007330279797316e-05

Description

Sets the winding to 0x63 with front faces culled. Prior to starting the test, NV097_SET_FRONT_FACE is set to CW. Only the left quad should be rendered.

Diff result for Front_face::FrontFace_63_CF_F

Source

Golden

FrontFace_CCW_CF_B

Difference

5.301310011418536e-05

Description

Sets the winding to counter-clockwise with back faces culled. Prior to starting the test, NV097_SET_FRONT_FACE is set to CW. Only the left quad should be rendered.

Diff result for Front_face::FrontFace_CCW_CF_B

Source

Golden

FrontFace_CCW_CF_F

Difference

4.708212145487778e-05

Description

Sets the winding to counter-clockwise with front faces culled. Prior to starting the test, NV097_SET_FRONT_FACE is set to CW. Only the right quad should be rendered.

Diff result for Front_face::FrontFace_CCW_CF_F

Source

Golden

FrontFace_CW_CF_B

Difference

4.708212145487778e-05

Description

Sets the winding to clockwise with back faces culled. Prior to starting the test, NV097_SET_FRONT_FACE is set to CCW. Only the right quad should be rendered.

Diff result for Front_face::FrontFace_CW_CF_B

Source

Golden

FrontFace_CW_CF_F

Difference

5.302979479893111e-05

Description

Sets the winding to clockwise with front faces culled. Prior to starting the test, NV097_SET_FRONT_FACE is set to CCW. Only the left quad should be rendered.

Diff result for Front_face::FrontFace_CW_CF_F

Source

Golden

Image_blit

Golden

Inline_array_size_mismatch

Description

Verifies that using an NV097_INLINE_ARRAY draw loop that ends with a partial vertex description silently ignores any partial vertices.

See xemu#985

Suite class def

src/tests/inline_array_size_mismatch.h

ExtraElements

Difference

1.1080825061071664e-05

Diff result for Inline_array_size_mismatch::ExtraElements

Source

Golden

Lighting_Two_Sided

Suite class def

src/tests/lighting_two_sided_tests.h

TwoSidedLighting

Difference

0.04711473360657692

Diff result for Lighting_Two_Sided::TwoSidedLighting

Source

Golden

Line_width

Golden

Line_FFFFFFFF

Difference

0.03536948189139366

Diff result for Line_width::Line_FFFFFFFF

Source

Golden

Material_alpha

Golden

MatA_SVSpec_ABF800000

Difference

4.099026773474179e-05

Diff result for Material_alpha::MatA_SVSpec_ABF800000

Source

Golden

Material_color

Suite class def

src/tests/material_color_tests.h

001_RG0_11

Difference

0.00012780306860804558

Diff result for Material_color::001_RG0_11

Source

Golden

011_rBg_11

Difference

0.00012709728616755456

Diff result for Material_color::011_rBg_11

Source

Golden

301_rG0_11

Difference

9.462189336773008e-05

Diff result for Material_color::301_rG0_11

Source

Golden

310_rG0_11

Difference

9.454858081880957e-05

Diff result for Material_color::310_rG0_11

Source

Golden

311_rG0_11

Difference

6.311744800768793e-05

Diff result for Material_color::311_rG0_11

Source

Golden

Material_color_source

Description

Tests behavior when lighting is enabled and color components are requested from various sources. Also tests the behavior of non-zero NV097_SET_MATERIAL_EMISSION values.

A color legend is rendered along the left hand side: vD = vertex diffuse. vS = vertex specular. sA = scene ambient. mD = material diffuse. mS = material specular. mE = material emissive. mA = material ambient. A single directional light is used with ambient, diffuse, and specular multipliers all set to 1.0.

NV097_SET_SCENE_AMBIENT_COLOR is set to scene ambient + material emissive.

Suite class def

src/tests/material_color_source_tests.h

FromMaterial

Difference

0.00031323646544478834

Description

Draws 9 quads with all colors taken from the material settings. Each quad is divided into rows: the top is just diffuse, the center is just specular, the bottom is both. It is also divided into columns: the left column retains material alpha, the right forces alpha to 1.0.

Source

Golden

FromVertexDiffuse

Difference

0.056347258388996124

Description

Draws 9 quads with some colors taken from the vertex diffuse color {0.f, 0.25f, 0.5f, 0.25f}. Each quad is divided into rows: the top is just diffuse, the center is just specular, the bottom is both. It is also divided into columns: the left column retains material alpha, the right forces alpha to 1.0.

Source

Golden

FromVertexSpecular

Difference

0.012382112443447113

Description

Draws 9 quads with some colors taken from the vertex specular color {0.5f, 0.25f, 0.f, 0.25f}. Each quad is divided into rows: the top is just diffuse, the center is just specular, the bottom is both. It is also divided into columns: the left column retains material alpha, the right forces alpha to 1.0.

Source

Golden

Overlapping_draw_modes

Suite class def

src/tests/overlapping_draw_modes_tests.h

ArrElm_DrwArr_ArrElm

Difference

0.0007812748663127422

Diff result for Overlapping_draw_modes::ArrElm_DrwArr_ArrElm

Source

Golden

DrwArr_DrwArr

Difference

0.0023024536203593016

Diff result for Overlapping_draw_modes::DrwArr_DrwArr

Source

Golden

SquashOpt

Difference

0.00503088254481554

Diff result for Overlapping_draw_modes::SquashOpt

Source

Golden

SquashOptSingleArray

Difference

0.00503088254481554

Diff result for Overlapping_draw_modes::SquashOptSingleArray

Source

Golden

Shade_model

Golden

Smoothing_control

0xFFFF0000

Difference

0.028109245002269745

Diff result for Smoothing_control::0xFFFF0000

Source

Golden

0xFFFF0001

Difference

0.0313580259680748

Diff result for Smoothing_control::0xFFFF0001

Source

Golden

Stencil

Description

Tests the behavior of NV097_SET_STENCIL_OP_ZPASS.

Source

Golden

Stipple_tests

Suite class def

src/tests/stipple_tests.h

Alternating_Off

Difference

inf

No source result

Golden - No source result

Golden image for Stipple_tests::Alternating_Off

Alternating_On

Difference

0.10187171399593353

Diff result for Stipple_tests::Alternating_On

Source

Golden

Border_Off

Difference

inf

No source result

Golden - No source result

Golden image for Stipple_tests::Border_Off

Border_On

Difference

0.10148291289806366

Diff result for Stipple_tests::Border_On

Source

Golden

Checkered_Off

Difference

0.020112289115786552

Diff result for Stipple_tests::Checkered_Off

Source

Golden

Checkered_On

Difference

0.1441894918680191

Diff result for Stipple_tests::Checkered_On

Source

Golden

Zero_Off

Difference

inf

No source result

Golden - No source result

Golden image for Stipple_tests::Zero_Off

Zero_On

Difference

0.25918343663215637

Source

Golden

Surface_clip

Description

Tests behavior of NV097_SET_SURFACE_CLIP_HORIZONTAL and NV097_SET_SURFACE_CLIP_VERTICAL.

Suite class def

src/tests/surface_clip_tests.h

rt_x0y0_w512h384

Difference

0.05154053866863251

Description

Configures a texture target as R5G6B5 and sets the clip region to 0,0 512x384, then clears the clipped region and draws 4 red quads just outside the clip region, a dark green quad 1 pixel within the clip region, and 4 lighter green quads along the clip boundary. The texture is then rendered into an 8888 backbuffer. No red should be seen, and the light green quads should be fully visible.

Diff result for Surface_clip::rt_x0y0_w512h384

Source

Golden

rt_x16y8_w512h384

Difference

0.043021734803915024

Description

Configures a texture target as R5G6B5 and sets the clip region to 16,8 512x384, then clears the clipped region and draws 4 red quads just outside the clip region, a dark green quad 1 pixel within the clip region, and 4 lighter green quads along the clip boundary. The texture is then rendered into an 8888 backbuffer. No red should be seen, and the light green quads should be fully visible.

Diff result for Surface_clip::rt_x16y8_w512h384

Source

Golden

rt_x8y16_w632h464

Difference

0.0016886611701920629

Description

Configures a texture target as R5G6B5 and sets the clip region to 8,16 632x464, then clears the clipped region and draws 4 red quads just outside the clip region, a dark green quad 1 pixel within the clip region, and 4 lighter green quads along the clip boundary. The texture is then rendered into an 8888 backbuffer. No red should be seen, and the light green quads should be fully visible.

Diff result for Surface_clip::rt_x8y16_w632h464

Source

Golden

x16y8_w512h384

Difference

0.06822066009044647

Description

Configures the backbuffer as R5G6B5 and sets the clip region to 16,8 512x384, then clears the clipped region and draws 4 red quads just outside the clip region, a dark green quad 1 pixel within the clip region, and 4 lighter green quads along the clip boundary. No red should be seen, and the light green quads should be fully visible. Because the format is 565, the colors are shifted from red -> green, light green -> light pink, and dark green -> pink.

Diff result for Surface_clip::x16y8_w512h384

Source

Golden

x8y16_w632h464

Difference

0.05280906707048416

Description

Configures the backbuffer as R5G6B5 and sets the clip region to 8,16 632x464, then clears the clipped region and draws 4 red quads just outside the clip region, a dark green quad 1 pixel within the clip region, and 4 lighter green quads along the clip boundary. No red should be seen, and the light green quads should be fully visible. Because the format is 565, the colors are shifted from red -> green, light green -> light pink, and dark green -> pink.
